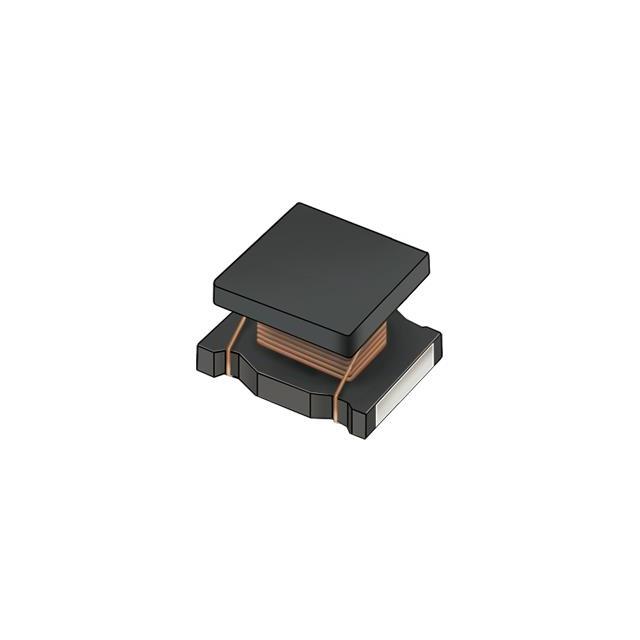

LQH43NZ Series
Manufacturer: Murata Power Solutions Inc.
Catalog
FIXED IND 33UH 270MA 1.2OHM SMD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Supplier Device Package | Inductance Frequency - Test | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Material - Core | Type | Tolerance | Frequency - Self Resonant | Package / Case | Shielding | Current Rating (Amps) | Ratings | Mounting Type | DC Resistance (DCR) | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 1 MHz | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 5 % | 12 MHz | 1812 (4532 Metric) | Unshielded | 270 mA | AEC-Q200 | Surface Mount | 1.2 Ohm | 33 µH |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 10 % | 1.5 MHz | 1812 (4532 Metric) | Unshielded | 35 mA | AEC-Q200 | Surface Mount | 45 Ohm | 1.8 mH | |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 1 MHz | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 5 % | 23 MHz | 1812 (4532 Metric) | Unshielded | 400 mA | AEC-Q200 | Surface Mount | 560 mOhm | 10 µH |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 1 MHz | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 10 % | 3.3 MHz | 1812 (4532 Metric) | Unshielded | 0.09 A | AEC-Q200 | Surface Mount | 9.7 Ohm | 390 µH |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 1 MHz | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 10 % | 8.4 MHz | 1812 (4532 Metric) | Unshielded | 0.18 A | AEC-Q200 | Surface Mount | 68 µH | |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 1 MHz | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 10 % | 9.3 MHz | 1812 (4532 Metric) | Unshielded | 0.2 A | AEC-Q200 | Surface Mount | 56 µH | |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 1 MHz | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 5 % | 19 MHz | 1812 (4532 Metric) | Unshielded | 360 mA | AEC-Q200 | Surface Mount | 730 mOhm | 15 µH |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 1 MHz | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 10 % | 38 MHz | 1812 (4532 Metric) | Unshielded | 0.5 A | AEC-Q200 | Surface Mount | 400 mOhm | 4.7 ÁH |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 5 % | 1.3 MHz | 1812 (4532 Metric) | Unshielded | 30 mA | AEC-Q200 | Surface Mount | 50 Ohm | 2.2 mH | |
Murata Power Solutions Inc. | -40 °C | 105 ░C | 1812 | 4532 Metric | 1 MHz | 3.2 mm | 0.177 in | 4.5 mm | 0.126 " | Ferrite | Drum Core Wirewound | 5 % | 4.5 MHz | 1812 (4532 Metric) | Unshielded | 110 mA | AEC-Q200 | Surface Mount | 5.4 Ohm | 220 µH |
