M2015LL Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Actuator Material	Electrical Life	Mounting Type	Voltage Rating - AC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Circuit	Voltage Rating - DC	Illumination	Features	Bushing Thread	Termination Style	Actuator Length [x]	Switch Function	Panel Cutout Dimensions [diameter]

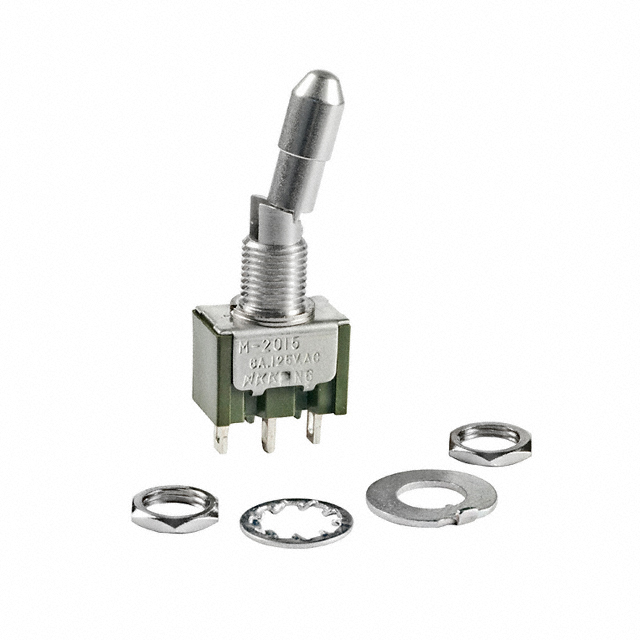

NKK Switches M2015LL1W01	Brass Chrome Plated	25000 Steps	Panel Mount	125 V	Locking Lever	85 °C	-30 ░C	3 A 6 A	SPDT	30 V	Non-Illuminated	Epoxy Sealed Terminals	1/4-40	Solder Lug	16.5 mm	On-Mom	6.5 mm
NKK Switches M2015LL1W01-A	Brass Chrome Plated	25000 Steps	Panel Mount	125 V	Locking Lever	85 °C	-30 ░C	3 A 6 A	SPDT	30 V	Non-Illuminated	Black Cap	1/4-40	Solder Lug	16.5 mm	On-Mom	6.5 mm
NKK Switches M2015LL1G01	Brass Chrome Plated	50000 Cycles	Panel Mount	28 V	Locking Lever	85 °C	-30 ░C	0.4 VA	SPDT	28 V	Non-Illuminated	Epoxy Sealed Terminals	1/4-40	Solder Lug	16.5 mm	On-Mom	6.5 mm
NKK Switches M2015LL2G40	Brass Chrome Plated	50000 Cycles	Right Angle Through Hole Vertical	28 V	Locking Lever	85 °C	-30 ░C	0.4 VA	SPDT	28 V	Non-Illuminated	Epoxy Sealed Terminals	Unthreaded	PC Pin	16.5 mm	On-Mom
