HFW5S Series

Catalog

CONN FPC VERT 5POS 1MM SMD

Part	Housing Color	Mating Cycles	Voltage Rating	Contact Material	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	FFC, FCB Thickness	Pitch	Pitch	Connector/Contact Type	Termination	Cable End Type	Flat Flex Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Housing Material	Number of Positions	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) HFW5S-2STAE1LF	Black	30	100 V	Phosphor Bronze	UL94 V-0	0.209 in	5.3 mm	0.3 mm	1 mm	0.039 in	Contacts Vertical - 1 Sided	Solder	Tapered	FPC	-55 C	85 °C	Gold	Surface Mount	Glass Filled Nylon 6T Polyamide (PA6T)	5
Amphenol ICC (FCI) HFW5S-4STZE1HLF	Black	30	100 V	Phosphor Bronze	UL94 V-0	0.209 in	5.3 mm	0.3 mm	1 mm	0.039 in	Contacts Top	Solder	Straight Tapered	FFC FPC	-55 C	105 ░C	Tin	Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	5

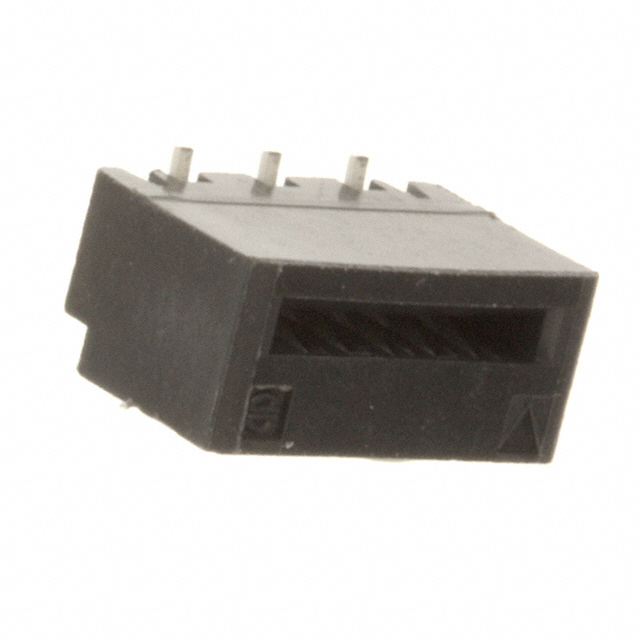

Amphenol ICC (FCI) HFW5S-2STE1LF	Black	30	100 V	Phosphor Bronze	UL94 V-0	0.209 in	5.3 mm		1 mm	0.039 in	Contacts Vertical - 1 Sided	Solder	Straight Tapered	FFC FPC	-55 C	85 °C	Tin	Surface Mount	Glass Filled Nylon 6T Polyamide (PA6T)	5	0.3 mm	0.33 mm
Amphenol ICC (FCI) HFW5S-2STBE1HLF	Black	30	100 V	Phosphor Bronze	UL94 V-0	0.209 in	5.3 mm	0.3 mm	1 mm	0.039 in	Contacts Top	Solder	Straight Tapered	FFC FPC	-55 C	105 ░C	Gold	Surface Mount	Liquid Crystal Polymer (LCP) Halogen Free	5
