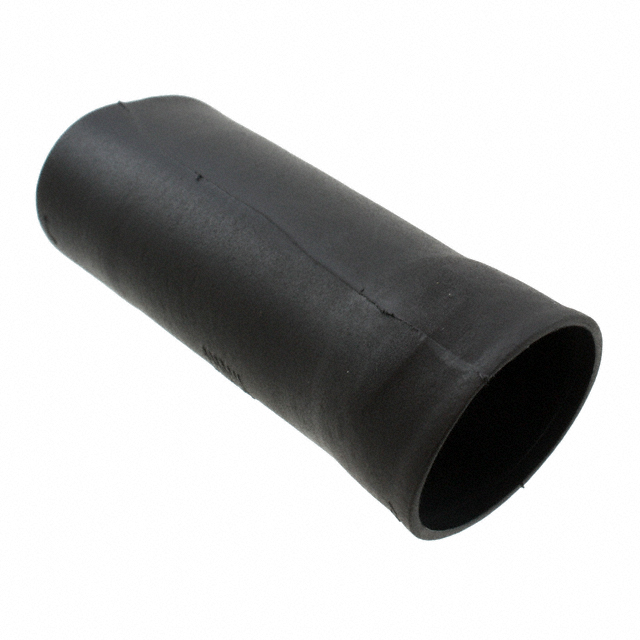

222D211 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

HEATSHRINK BOOT R/A SZ11 BLACK

Part	Total Length Recovered	Total Length Recovered	Type	Small Recovered Length	Small Recovered Length	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Color	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Features	Shell Size - Insert	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Material	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine 222D211-4-32-0	69.9 mm	2.752 in	Boot - 90°	52.3 mm	2.059 in	6.4 mm	0.252 "	Black	18.49 mm	0.728 in	22.4 mm	0.882 in	Flame Retardant Fluid Resistant Heat Resistant Lip Potting (Injection) Port Vent Port	11	11.4 mm	0.449 "	Polyolefin (PO) Flexible Irradiated	22.4 mm	0.882 in
TE Connectivity Aerospace, Defense and Marine 222D211-3-61/42-0-CS5078	105.21 mm	4.142 in	Boot - 90°			6.4 mm	0.252 "	Black	18.49 mm	0.728 in	22.4 mm	0.882 in	Drain Holes Flame Retardant Fluid Resistant Heat Resistant Lip	11	11.4 mm	0.449 "	Polyolefin (PO) Semi-Rigid Irradiated	22.4 mm	0.882 in
TE Connectivity Aerospace, Defense and Marine 222D211-4/42-0	105.21 mm	4.142 in	Boot - 90°			6.4 mm	0.252 "	Black	18.49 mm	0.728 in	22.4 mm	0.882 in	Adhesive Coating Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	11	11.4 mm	0.449 "	Polyolefin (PO) Flexible Irradiated	22.4 mm	0.882 in
TE Connectivity Aerospace, Defense and Marine 222D211-25/225-0	105.21 mm	4.142 in	Boot - 90°			6.4 mm	0.252 "	Black	18.49 mm	0.728 in	22.4 mm	0.882 in	Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resist	11	11.4 mm	0.449 "	Elastomer Semi-Rigid Irradiated	22.4 mm	0.882 in
TE Connectivity Aerospace, Defense and Marine 222D211-25-22/86-0	69.9 mm	2.752 in	Boot - 90°	52.3 mm	2.059 in	6.4 mm	0.252 "	Black	18.49 mm	0.728 in	22.4 mm	0.882 in	Abrasion Resistant Adhesive Coating Chemical Resistant Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resist	11	11.4 mm	0.449 "	Elastomer Semi-Rigid Irradiated	22.4 mm	0.882 in
TE Connectivity Aerospace, Defense and Marine 222D211-4-61/42-0-CS5078	105.21 mm	4.142 in	Boot - 90°			6.4 mm	0.252 "	Black	18.49 mm	0.728 in	22.4 mm	0.882 in	Adhesive Coating Drain Holes Flame Retardant Fluid Resistant Heat Resistant Lip Strain Resistant	11	11.4 mm	0.449 "	Polyolefin (PO) Flexible Irradiated	22.4 mm	0.882 in
