093627 Series
Manufacturer: Molex
Beta
⌘K
CONN JACK 1PORT 1000 BASE-T PCB
| Part | Features | Tab Direction | Number of Ports | Shielding | Shield Material | Housing Material | Orientation | Mounting Type | Termination | Contact Material | Connector Type | Contact Finish | LED Color | Number of Cores per Jack | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

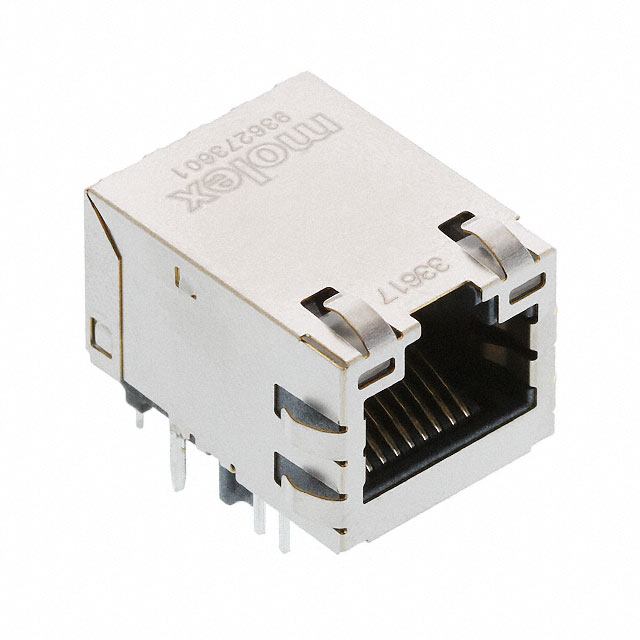

 Molex | Board Guide | Up | 1 | Shielded EMI Finger | Brass | Liquid Crystal Polymer (LCP) | 90 ° | Through Hole | Solder | Phosphor Bronze | RJ45 | Palladium-Nickel | Does Not Contain LED | 8 | 14.1 mm | 0.555 in | 85 °C | -40 °C | 1 | 10/100/1000 Base-T AutoMDIX |

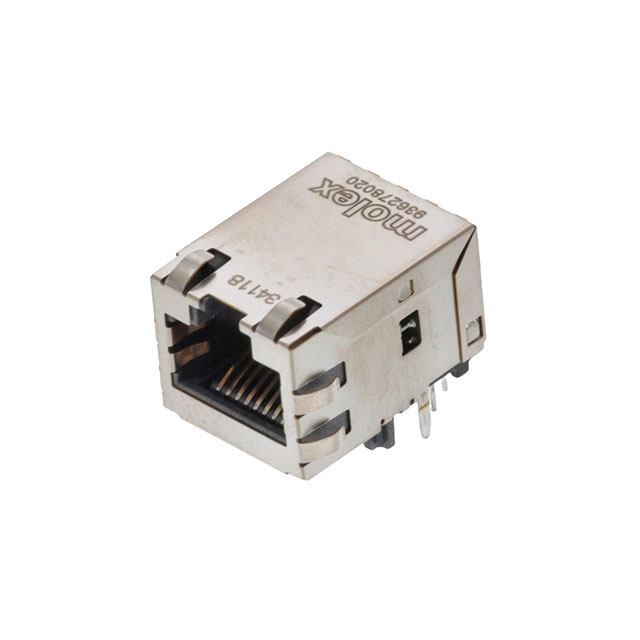

 Molex | Board Guide | Up | 1 | Shielded EMI Finger | Brass | Liquid Crystal Polymer (LCP) | 90 ° | Through Hole | Solder | Phosphor Bronze | RJ45 | Gold | Green - Green | 8 | 14.1 mm | 0.555 in | 70 °C | 0 °C | 1 | 10/100/1000 Base-T AutoMDIX |
