GSM90B19 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

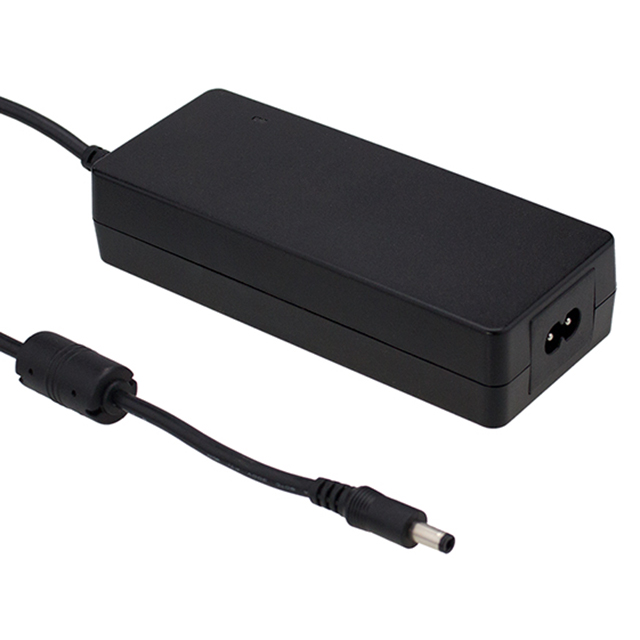

AC/DC DESKTOP ADAPTER 19V 90W
| Part | Form | Power (Watts) | Input Connector | Voltage - Input [Min] | Voltage - Input [Max] | Cord Length | Cord Length | Voltage - Output | Approval Agency | Region Utilized | Output Connector [diameter] | Output Connector | Output Connector [x] | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Efficiency | Polarization | No Load Power Consumption | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Desktop (Class II) | 90 W | IEC 320-C8 | 80 VAC | 264 VAC | 1.2 m | 47.2 in | 19 V | CB CE cRUus TUV | International | 2.5 mm 5.5 mm | Barrel Plug | 11 mm | -30 ░C | 70 °C | Medical | Level VI | Positive Center | 150 mW | 145 mm | 5.71 " | 2.36 " | 1.26 " | 32 mm | 60 mm | Cord (Sold Separately) |
