2713-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

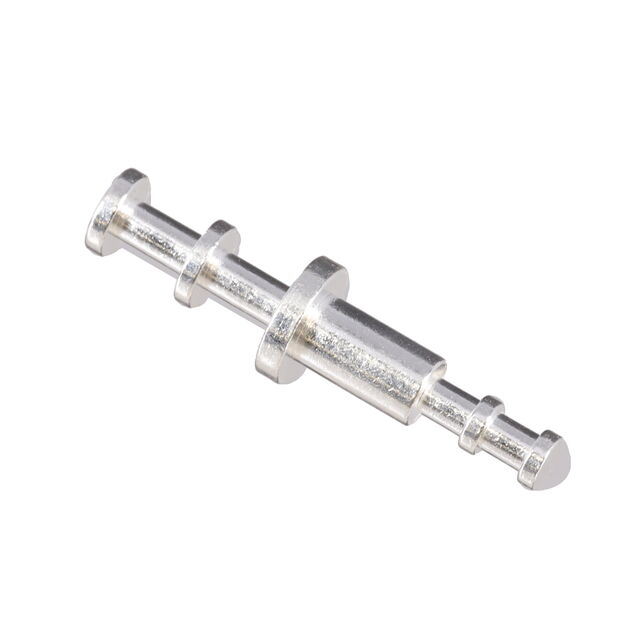

TERM TURRET DBL
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Length - Above Board | Length - Above Board | Board Thickness | Board Thickness | Diameter - Turret Head | Diameter - Turret Head | Terminal Type | Number of Turrets | Length - Below Flange | Length - Below Flange [x] | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.094 in | 2.39 mm | 0.601 in | 15.27 mm | 3.96 mm | 0.156 " | Non-Insulated | Brass Alloy | 200 Áin | 5.08 Ám | Tin | 0.281 " | 7.14 mm | 3.18 mm | 0.125 " | 0.07 " 0.109 " | 1.78 mm 2.77 mm | Double End | Double | 8.13 mm | 0.32 " | Through Hole | Swage |
Mill-Max Manufacturing Corp. | 0.094 in | 2.39 mm | 0.601 in | 15.27 mm | 3.96 mm | 0.156 " | Non-Insulated | Brass Alloy | 200 Áin | 5.08 Ám | Tin-Lead | 0.281 " | 7.14 mm | 3.18 mm | 0.125 " | 0.07 " 0.109 " | 1.78 mm 2.77 mm | Double End | Double | 8.13 mm | 0.32 " | Through Hole | Swage |
Mill-Max Manufacturing Corp. | 0.094 in | 2.39 mm | 0.601 in | 15.27 mm | 3.96 mm | 0.156 " | Non-Insulated | Brass Alloy | 300 µin | 7.62 µm | Tin-Lead | 0.281 " | 7.14 mm | 3.18 mm | 0.125 " | 0.07 " 0.109 " | 1.78 mm 2.77 mm | Double End | Double | 8.13 mm | 0.32 " | Through Hole | Swage |
 Mill-Max Manufacturing Corp. | 0.094 in | 2.39 mm | 0.601 in | 15.27 mm | 3.96 mm | 0.156 " | Non-Insulated | Brass Alloy | 300 µin | 7.62 µm | Silver | 0.281 " | 7.14 mm | 3.18 mm | 0.125 " | 0.07 " 0.109 " | 1.78 mm 2.77 mm | Double End | Double | 8.13 mm | 0.32 " | Through Hole | Swage |
