MGJ6T12 Series

Catalog

DC DC CONVERTER 24V 24V 24V 6W

Part	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Efficiency	Package / Case	Voltage - Output 1	Applications	Mounting Type	Features	Voltage - Input (Max) [Max]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 3	Voltage - Isolation	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max) [Max]

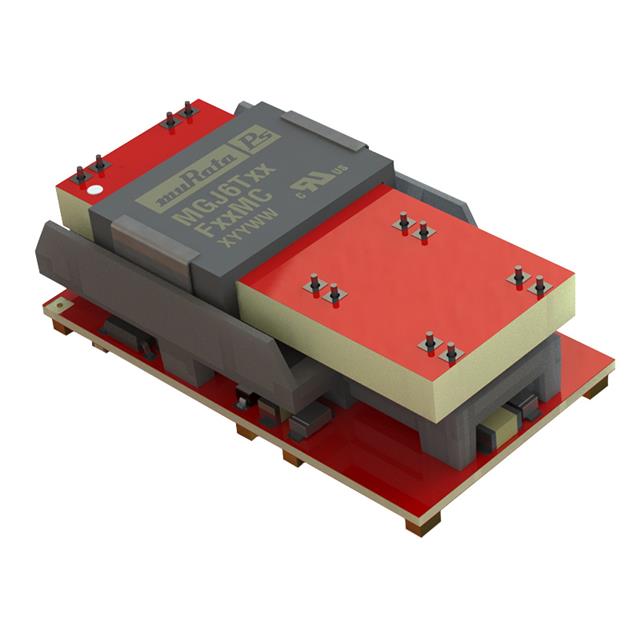

Murata Power Solutions Inc. MGJ6T12F24MC-R7	6 W	125 mA	62.5 mA	62.5 mA	9 V	84 %	9-SMD Module	24 V	ITE (Commercial) Medical	Surface Mount	SCP UVLO	18 V	3	-40 °C	105 ░C	24 V	5.2 kV	Isolated Module	14.1 mm	0.56 "	41.5 mm	1.63 "	0.89 in	22.6 mm	24 V

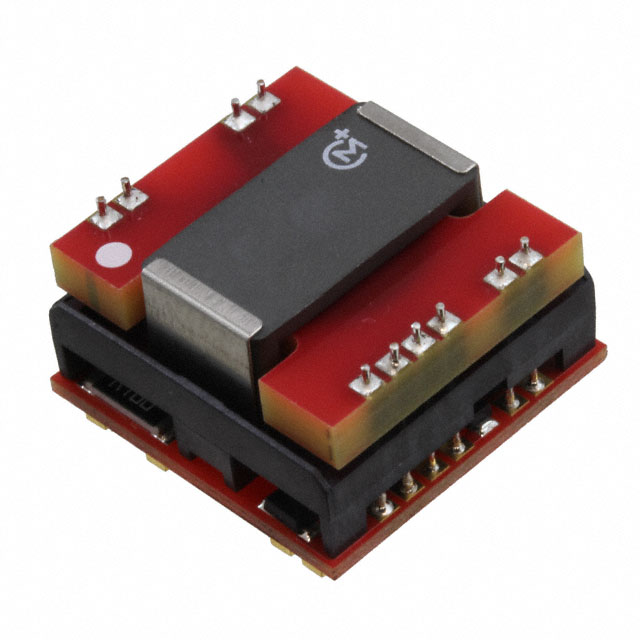

Murata Power Solutions Inc. MGJ6T12150505MC-R7	6 W				9 V		7-SMD Module	15 V	ITE (Commercial) Medical	Surface Mount	SCP UVLO	18 V	2	-40 °C	105 ░C		5.2 kV	Isolated Module	14.7 mm	0.58 "	31.2 mm	1.23 "	0.89 in	22.6 mm	-10 V	240 mA	240 mA
Murata Power Solutions Inc. MGJ6T12F24MC-R13	6 W	125 mA	62.5 mA	62.5 mA	9 V	84 %	9-SMD Module	24 V	ITE (Commercial) Medical	Surface Mount	SCP UVLO	18 V	3	-40 °C	105 ░C	24 V	5.2 kV	Isolated Module	14.1 mm	0.56 "	41.5 mm	1.63 "	0.89 in	22.6 mm	24 V
