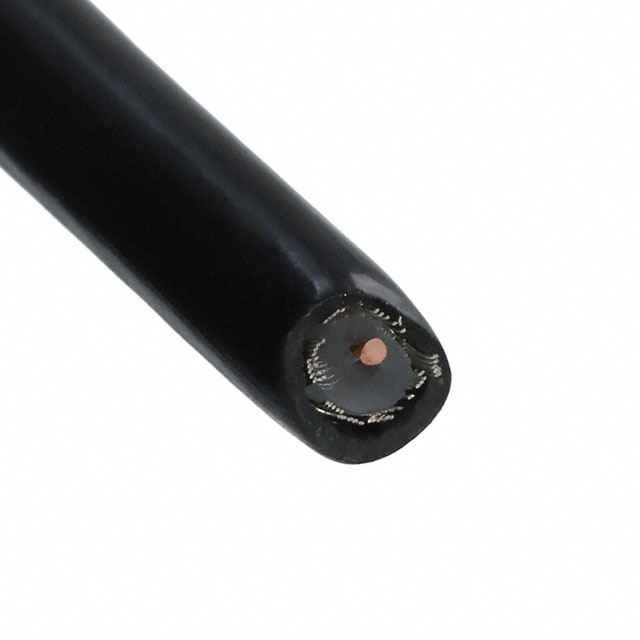

9058X Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE COAXIAL RG-58 20AWG 1000'
| Part | VoP, Velocity of Propagation | Conductor Material | Shield Material | Dielectric Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Jacket Color | Wire Gauge | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Impedance | Length [x] | Length [x] | Cable Group | Jacket (Insulation) Material | Usage | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 66 | Copper Bare | Copper Tinned | Solid Polyethylene (PE) | 95 % | -20 ░C | 60 °C | 0.033 in | 0.84 mm | Black | 20 AWG | Coaxial | 0.195 " | 4.95 mm | Braid | 51.5 Ohms | 304.8 m | 1000 ft | RG-58 | Poly-Vinyl Chloride (PVC) | Network | Solid |
