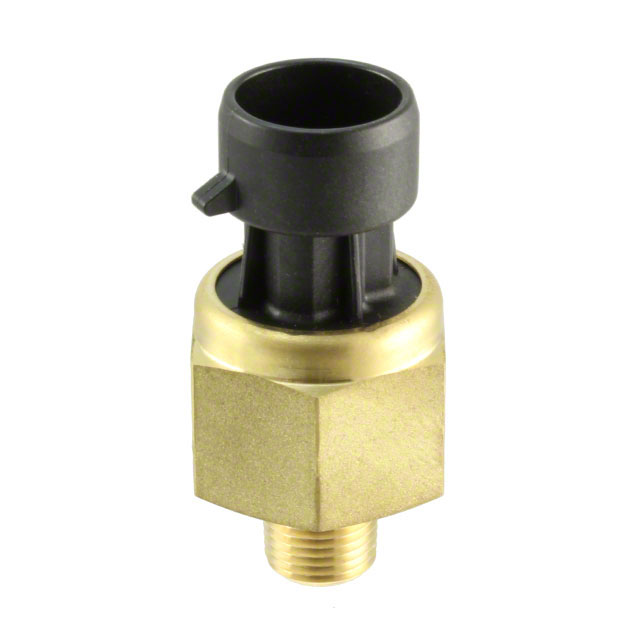

PX3AN2 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 250PSIS 1/8"NPT 4.5V

Part	Pressure Type	Package / Case	Port Size	Port Size	Port Size	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Accuracy	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Operating Pressure	Operating Pressure	Output [Min]	Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications
Honeywell Sensing and Productivity Solutions PX3AN2BS250PSAAX	Sealed Gauge	Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	4.75 V	5.25 V	Threaded	1 %	Connector	450 PSI	3102.64 kPa	Analog Voltage	250 PSI	1723.69 kPa	0.5 V	4.5 V	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions PX3AN2BS150PAAAX		Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	4.75 V	5.25 V	Threaded	1 %	Connector	450 PSI	3102.64 kPa	Analog Voltage	150 PSI	1034.21 kPa	0.5 V	4.5 V	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions PX3AN2BS250PAAAX		Cylinder	0.125 "	3.18 mm	Male	Temperature Compensated	4.75 V	5.25 V	Threaded	1 %	Connector	450 PSI	3102.64 kPa	Analog Voltage	250 PSI	1723.69 kPa	0.5 V	4.5 V	125 °C	-40 °C	Industrial Automation
Honeywell Sensing and Productivity Solutions PX3AN2BS004BAAAX		Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	4.75 V	5.25 V	Threaded	1 %	Connector	246.56 PSI	1700 kPa	Analog Voltage	58.02 PSI	4 bar	0.5 V	4.5 V	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions PX3AN2BF010BSCHX	Sealed Gauge	Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	8 V	30 VDC	Threaded	1 %	Connector	449.62 PSI	3100 kPa	Analog Current	145.04 PSI	10 bar	4 mA	20 mA
Honeywell Sensing and Productivity Solutions PX3AN2BH300PSAAX	Sealed Gauge	Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	4.75 V	5.25 V	Threaded	1 %	Connector	300 PSI	2068.43 kPa	Analog Voltage	300 PSI	2068.43 kPa	0.5 V	4.5 V	125 °C	-30 ░C
Honeywell Sensing and Productivity Solutions PX3AN2BS200PSAAX	Sealed Gauge	Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	4.75 V	5.25 V	Threaded	1 %	Connector	450 PSI	3102.64 kPa	Analog Voltage	200 PSI	1378.95 kPa	0.5 V	4.5 V	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions PX3AN2BS050PAAAX		Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	4.75 V	5.25 V	Threaded	1 %	Connector	250 PSI	1723.69 kPa	Analog Voltage	50 PSI	344.74 kPa	0.5 V	4.5 V	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions PX3AN2BS016BACHX		Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	8 V	30 VDC	Threaded	1 %	Connector	464.12 PSI	3200 kPa	Analog Current	232.06 PSI	1600 kPa	4 mA	20 mA	125 °C	-40 °C
Honeywell Sensing and Productivity Solutions PX3AN2BH010BAAAX		Cylinder Threaded	0.125 "	3.18 mm	Male	Temperature Compensated	4.75 V	5.25 V	Threaded	1 %	Connector	449.62 PSI	3100 kPa	Analog Voltage	145.04 PSI	10 bar	0.5 V	4.5 V	125 °C	-30 ░C
