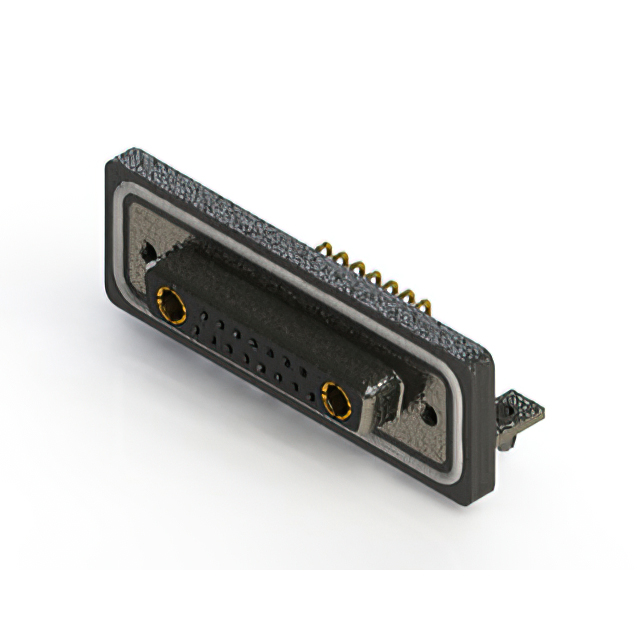

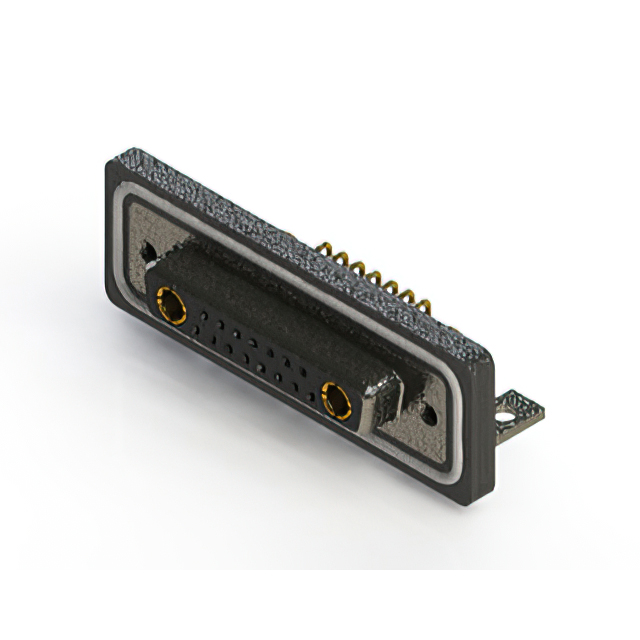

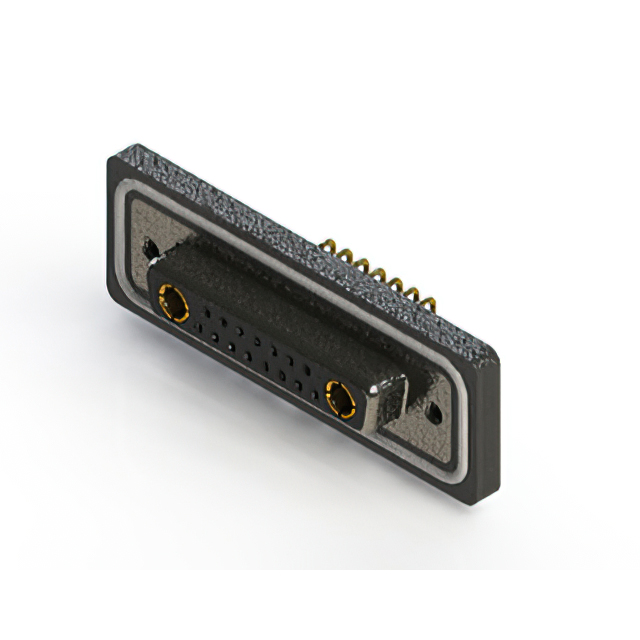

630W17 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB RCPT 17POS R/A SLDR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Contact Material | Ingress Protection | Connector Style | Mounting Type | Current Rating (Amps) | Connector Type | Number of Rows [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Termination | Shell Material, Finish | Material Flammability Rating | Flange Feature | Flange Feature | Contact Finish | Contact Type | Features | Contact Finish Thickness | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Panel Mount Right Angle Through Hole | 20A 5A | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | 5 µin | 0.127 µm | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell | 4-40 | Gold | Signal and Power | Shielded | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Panel Mount Right Angle Through Hole | 10A 5A | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell | 4-40 | Gold | Signal and Power | Board Lock Mounting Brackets Shielded | Flash | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Right Angle Through Hole | 10A 5A | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | 30 Áin | 0.76 Ám | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell (M3) | Gold | Signal and Power | Mounting Brackets Shielded | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | 30 Áin | 0.76 Ám | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell | 4-40 | Gold | Signal and Power | Shielded | 5 A 40 A | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | 30 Áin | 0.76 Ám | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell | 4-40 | Gold | Signal and Power | Shielded | 5 A 30 A | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Panel Mount Right Angle Through Hole | 10A 5A | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | 5 µin | 0.127 µm | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell (M3) | Gold | Signal and Power | Board Lock Mounting Brackets Shielded | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Panel Mount Right Angle Through Hole | 20A 5A | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | 30 Áin | 0.76 Ám | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell | 4-40 | Gold | Signal and Power | Board Lock Mounting Brackets Shielded | ||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Right Angle Through Hole | 20A 5A | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | 5 µin | 0.127 µm | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell (M3) | Gold | Signal and Power | Mounting Brackets Shielded | |||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Panel Mount Right Angle Through Hole | 20A 5A | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell (M3) | Gold | Signal and Power | Shielded | Flash | ||||
 EDAC Inc. | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 125 °C | Black | 125 VDC | Copper Alloy | IP67 - Dust Tight Waterproof | Combo D-Sub | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 2 | B DB | 17W2 | 3 | 17 | 30 Áin | 0.76 Ám | Solder | Nickel Plated Steel | UL94 V-0 | Housing/Shell | 4-40 | Gold | Signal and Power | Board Lock Mounting Brackets Shielded | 5 A 40 A |
