2842284 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

30P,2MM,SHRD HDR,DRVT,0.76AU,TB

Part	Shrouding	Insulation Material	Contact Length - Mating	Contact Length - Mating	Insulation Color	Number of Rows	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Material	Contact Finish - Mating	Material Flammability Rating	Style	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Current Rating (Amps)	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Pitch - Mating [x]	Pitch - Mating [x]	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Fastening Type	Contact Finish - Post	Insulation Height	Insulation Height	Contact Shape
TE Connectivity Raychem Cable Protection 3-2842284-0	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	30	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
TE Connectivity Raychem Cable Protection 4-2842284-2	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	42	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
TE Connectivity Raychem Cable Protection 1-2842284-4	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	14	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
TE Connectivity Raychem Cable Protection 4-2842284-8	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	48	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square

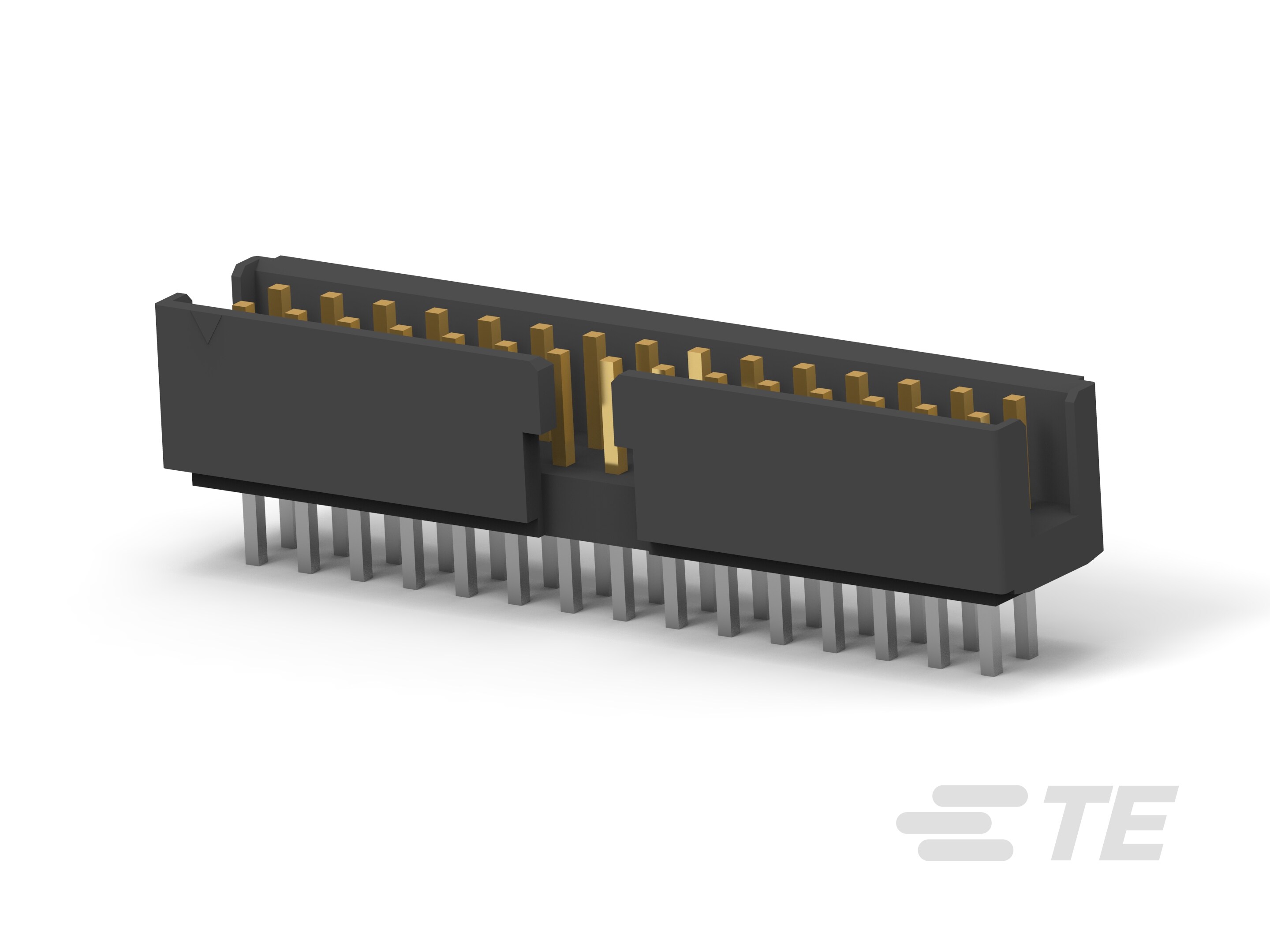

TE Connectivity Raychem Cable Protection 3-2842284-6	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	36	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
TE Connectivity Raychem Cable Protection 5-2842284-0	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	50	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
TE Connectivity Raychem Cable Protection 3-2842284-8	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	38	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
TE Connectivity Raychem Cable Protection 3-2842284-4	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	34	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
TE Connectivity Raychem Cable Protection 4-2842284-4	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A	44	2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
TE Connectivity Raychem Cable Protection 3-2842284-2	Shrouded - 2 Wall	Thermoplastic	3.7 mm	0.146 in	Black	2	Solder	125 °C	-40 °C	Male Pin	Copper Alloy	Gold	UL94 V-0	Board to Board Cable	All	30 Áin	0.76 Ám	0.11 in	2.8 mm	Header	2 A		2 çm	78.7 çin	Through Hole	0.079 in	2 mm	0.079 in	2 mm	125 VAC	Detent Lock	Tin	6.05 mm	0.238 in	Square
