1740194 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

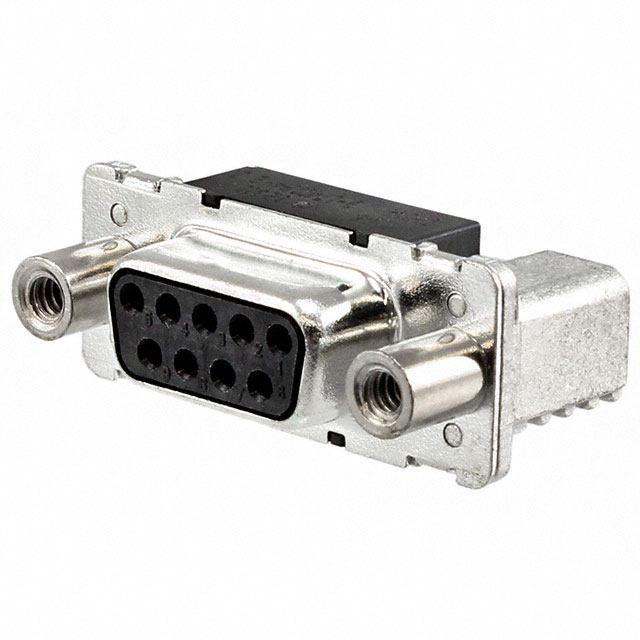

CONN D-SUB RCPT 9P SMD R/A SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Mounting Type | Shell Material, Finish | Dielectric Material | Number of Rows | Features | Termination | Number of Positions | Flange Feature | Color | Material Flammability Rating | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | DE E | 1 | Gold | Surface Mount Right Angle | Nickel Plated Steel | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | 2 | Board Guide | Solder | 9 | Female Screwlock (4-40) Mating Side | Black | UL94 V-0 | Signal | 31.5 µin | 0.8 µm | D-Sub | Receptacle Female Sockets |
TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | DE E | 1 | Gold | Surface Mount | Nickel Plated Steel | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | 2 | Board Guide | Solder | 9 | Housing/Shell (Unthreaded) | Black | UL94 V-0 | Signal | 31.5 µin | 0.8 µm | D-Sub | Male Pins Plug |
 TE Connectivity Raychem Cable Protection | 105 ░C | -55 °C | DE E | 1 | Gold | Surface Mount Right Angle | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | 2 | Board Guide | Solder | 9 | Female Screwlock (4-40) Mating Side | Black | UL94 V-0 | Signal | 31.5 µin | 0.8 µm | D-Sub | Receptacle Female Sockets |
