280379 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

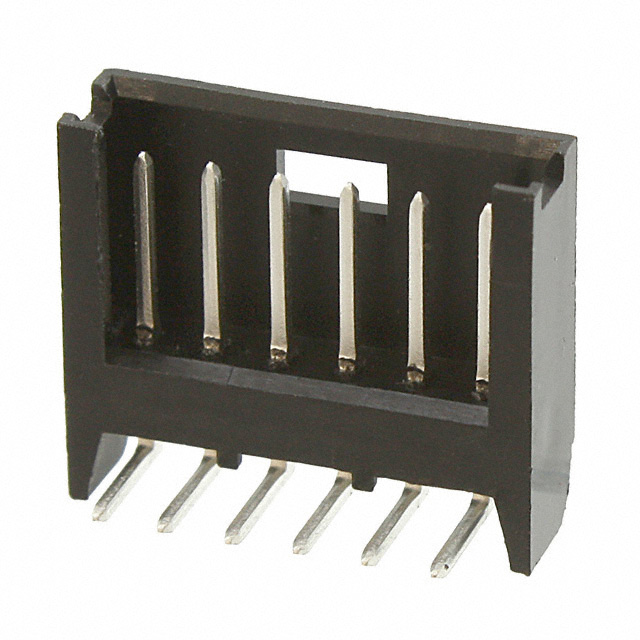

CONN HEADER R/A 6POS 2.54MM
| Part | Voltage Rating | Contact Shape | Material Flammability Rating | Connector Type | Number of Positions Loaded | Number of Positions | Contact Finish - Post | Fastening Type | Insulation Material | Style | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Height | Insulation Height | Mounting Type | Contact Type | Current Rating (Amps) | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Material | Contact Length - Mating [custom] | Contact Length - Mating [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 40 V | Square | UL94 V-0 | Header | All | 6 | Tin | Detent Lock | Thermoplastic | Board to Board Cable | 3 µm | 118.1 µin | 1 | Solder | -40 °C | 80 C | Shrouded - 3 Wall | 0.197 in | 5 mm | Through Hole Right Angle | Male Pin | 3 A | 0.1 in | 2.54 mm | 3.5 mm | 0.138 in | Black | Brass | 6.6 mm | 0.26 in | 118.1 µin | 3 µm |
