W33F1C-P Series
Manufacturer: ODU
Beta
⌘K

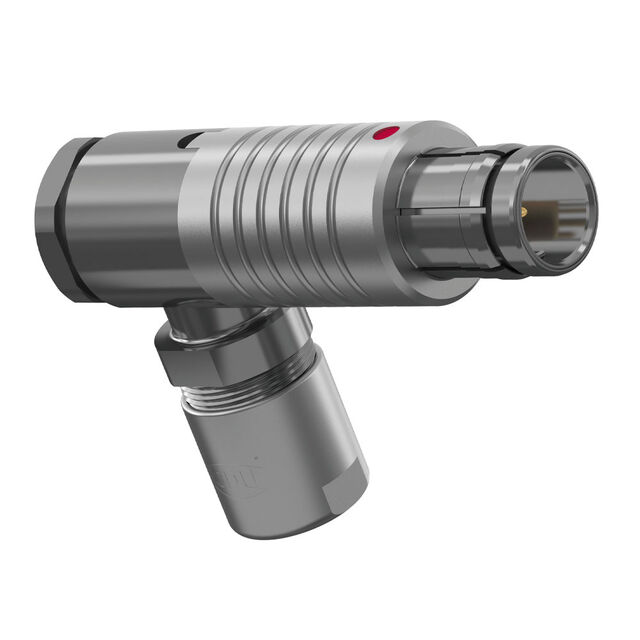

ODU MINI-SNAP RT.ANGLE PLUG, STY
| Part | Color | Material Flammability Rating | Backshell Material, Plating | Shielding | Shell Finish | Primary Material | Fastening Type | Features | Voltage Rating | Orientation [custom] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Number of Positions | Ingress Protection | Current Rating (Amps) | Mounting Type | Shell Size - Insert | Connector Type | Contact Finish - Mating | Contact Material | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Silver | UL94 V-0 | Brass Chrome over Nickel | Unshielded | Chrome over Nickel | Metal | Push-Pull | Backshell | 600 V | 1 | 8 mm | 0.295 in | 0.315 in | 7.5 mm | Brass | 120 °C | -40 C | Industrial Medical Military Testing Equipment & Measurement | 2 | IP68 - Dust Tight Waterproof | 32 A | Free Hanging (In-Line) Right Angle | 3 TPI | Plug Male Pins | Gold | Brass | Polyetheretherketone (PEEK) | |
Silver | UL94 V-0 | Brass Chrome over Nickel | Unshielded | Chrome over Nickel | Metal | Push-Pull | Backshell | 333 V | 1 | Brass | 120 °C | -40 C | Industrial Medical Military Testing Equipment & Measurement | 20 | IP68 - Dust Tight Waterproof | 7.5 A | Free Hanging (In-Line) Right Angle | 3 TPI | Plug Male Pins | Gold | Brass | Polyetheretherketone (PEEK) |
