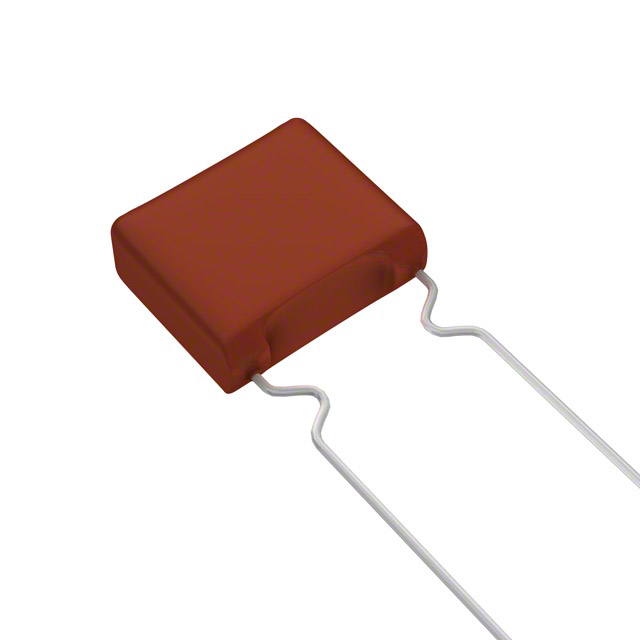

ECW-F2104 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
CAP FILM 0.1UF 250V PP 3%( 13 X 5 X 14.1MM) RADIAL 7.5MM 105°C BAG
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Lead Spacing | Lead Spacing | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Applications | Mounting Type | Tolerance | Termination | Voltage Rating - DC | Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 13 mm | 0.512 " | 5 mm | 0.197 " | 0.295 in | 7.5 mm | Radial | -40 C | 105 ░C | Polypropylene (PP) Metallized | High Frequency Switching | Through Hole | 3 % | PC Pins | 250 V | 100000 pF | 0.614 in | 15.6 mm | |
Panasonic Electronic Components | 13 mm | 0.512 " | 5 mm | 0.197 " | 0.295 in | 7.5 mm | Radial | -40 C | 105 ░C | Polypropylene (PP) Metallized | High Frequency Switching | Through Hole | 5 % | PC Pins | 250 V | 100000 pF | 0.614 in | 15.6 mm | |
 Panasonic Electronic Components | 13 mm | 0.512 " | 5 mm | 0.197 " | 0.394 in | 10 mm | Radial | -40 C | 105 ░C | Polypropylene (PP) Metallized | High Frequency Switching | Through Hole | 5 % | PC Pins | 250 V | 100000 pF | 0.614 in | 15.6 mm | 125 V |
