EE-SX954 Series

Catalog

OPTICAL SWITCHES, TRANSMISSIVE, PHOTOTRANSISTOR OUTPUT STD 5MM PW NPN 1M ROBOTIC

Part	Type	Current - DC Forward (If) (Max) [Max]	Output Configuration	Sensing Method	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Current - Collector (Ic) (Max) [Max]	Mounting Type

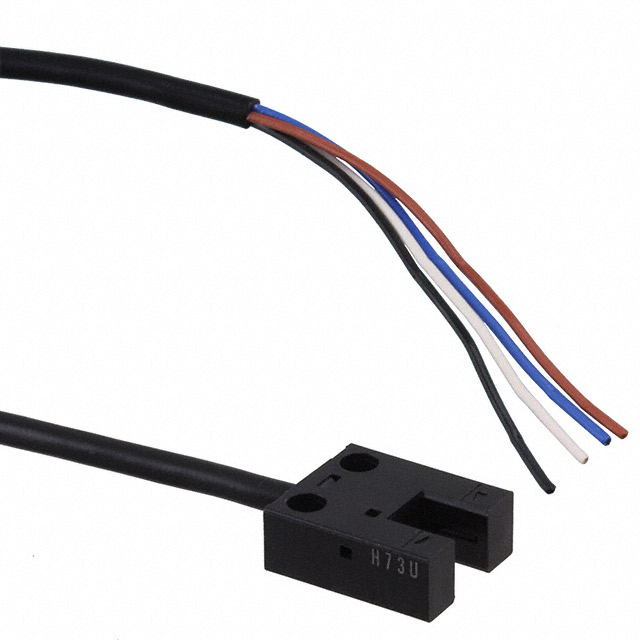

Omron Automation and Safety EE-SX954P-R 1M	Amplified	50 mA	PNP - Dark-ON/Light-ON - Selectable	Through-Beam	24 V	Module Slot Type Wire Leads	55 °C	-25 °C	5 mm	0.197 in	15 mA	Chassis Mount
Omron Automation and Safety EE-SX954-W 3M	Amplified	50 mA		Through-Beam	24 V	Module Slot Type Wire Leads	55 °C	-25 °C	5 mm	0.197 in	15 mA	Chassis Mount
