NHD-0116 Series

Catalog

LCD MOD 16DIG 16X1 TRANS YLW/GRN

Part	Interface	Viewing Area [x]	Viewing Area [y]	Number of Characters	Display Format [x]	Display Format [y]	Text Color	Operating Temperature [Min]	Operating Temperature [Max]	Background Color	Outline L x W x H [z]	Outline L x W x H [x]	Outline L x W x H [y]	Display Mode	Character Size [z]	Character Size [y]	Dot Size [z]	Dot Size [y]	Voltage - Supply [Max]	Voltage - Supply [Min]	Controller Type	Display Type	Character Format [x]	Character Format [y]	Backlight	Dot Size [x]	Character Size [custom]	Character Size [custom]	Character Format	Character Size [x]	Voltage - Supply

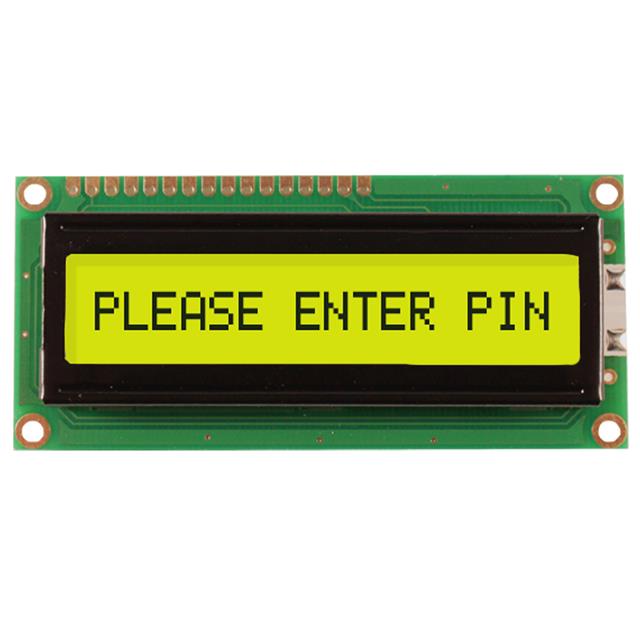

Newhaven Display Intl NHD-0116AZ-FL-YBW	Parallel	64 mm	13.8 mm	16	16	1	Blue	-20 ░C	70 °C	Green	13.5 mm	80 mm	36 mm	Transflective	6.56 mm	3.07 mm	0.75 mm	0.55 mm	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots

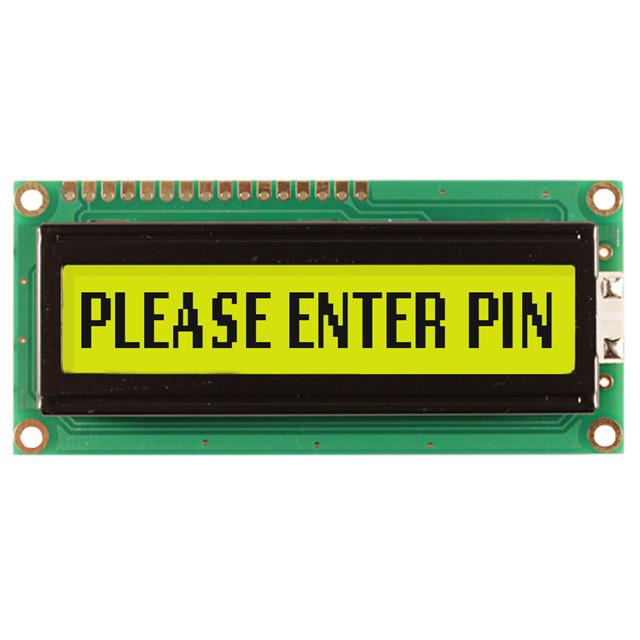

Newhaven Display Intl NHD-0116AZ-FL-GBW	8-Bit Parallel	64 mm	13.8 mm	16	16	1	Blue	-20 ░C	70 °C	Green	13 mm	80 mm	36 mm	Transflective	6.56 mm	3.07 mm	0.75 mm	0.55 mm	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots

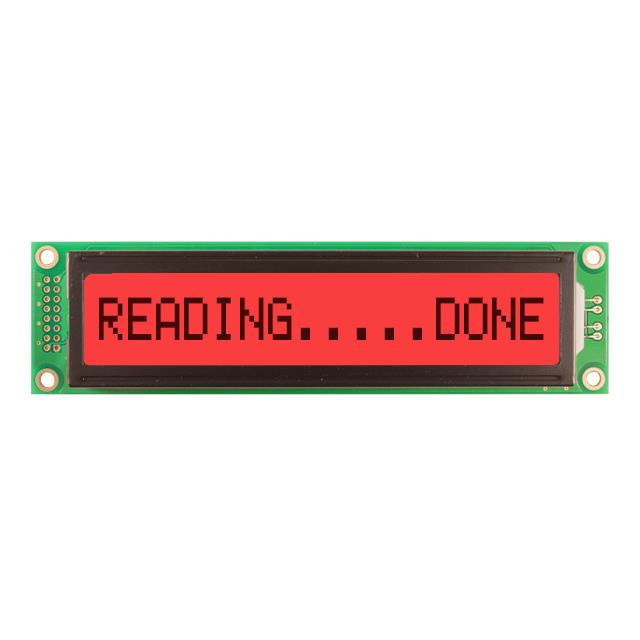

Newhaven Display Intl NHD-0116GZ-FSR-FBW	Parallel	120 mm	23 mm	16	16	1	Black	-20 ░C	70 °C	Red	13 mm	151 mm	40 mm	Transflective				1.77 mm	5.5 V	4.7 V	SPLC780D ST7066U	FSTN - Film Super-Twisted Nematic	5 Dots	8 Dots	LED - Red	1.15 mm	14.54 mm	6 mm

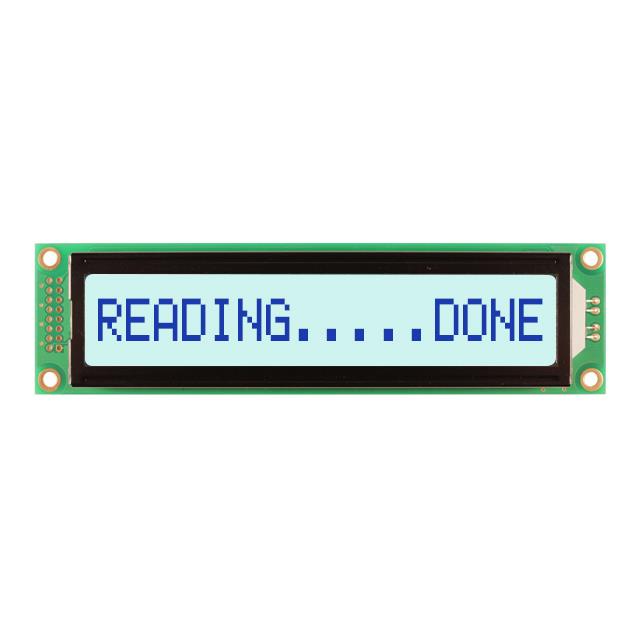

Newhaven Display Intl NHD-0116GZ-FSW-GBW	Parallel	120 mm	23 mm	16	16	1	Blue	-20 ░C	70 °C	Gray	13 mm	151 mm	40 mm	Transflective				1.77 mm	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots	LED - White	1.15 mm	14.54 mm	6 mm

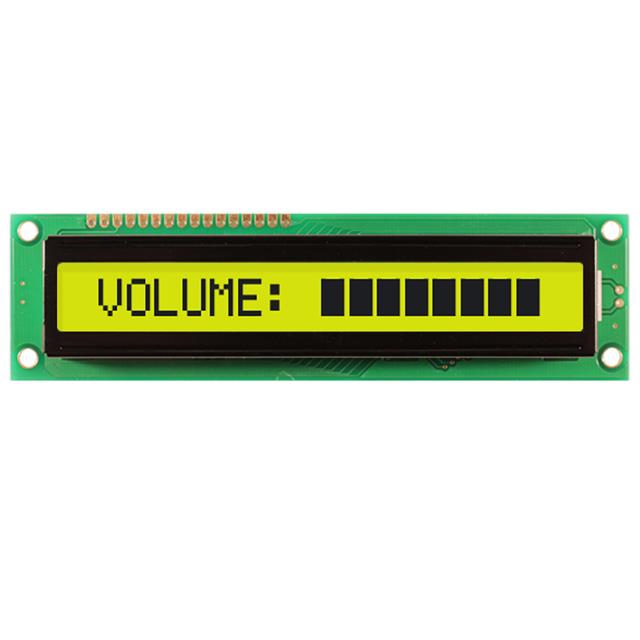

Newhaven Display Intl NHD-0116DZ-FL-GBW	Parallel	99 mm	13 mm	16	16	1	Blue	-20 ░C	70 °C	Green	14 mm	122 mm	33 mm	Transflective		4.84 mm		1.1 mm	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	7 Dots		0.92 mm			Cursor	9.66 mm

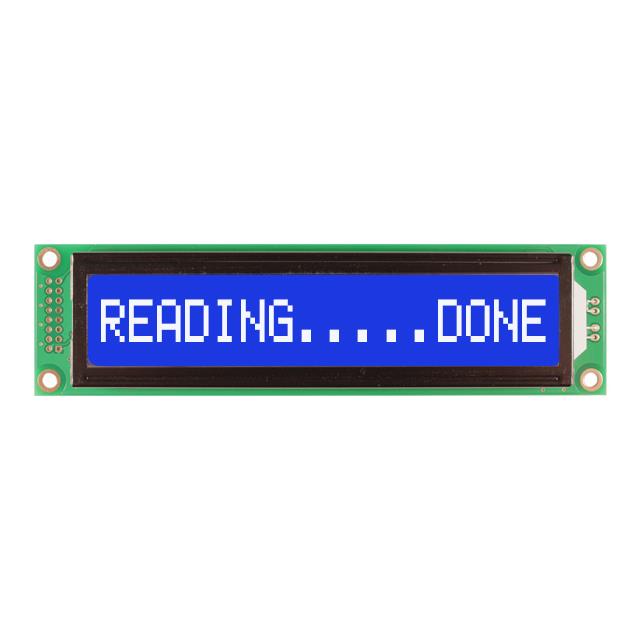

Newhaven Display Intl NHD-0116GZ-NSW-BBW	Parallel	120 mm	23 mm	16	16	1	White	-20 ░C	70 °C	Blue	13 mm	151 mm	40 mm	Transmissive				1.77 mm	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots	LED - White	1.15 mm	14.54 mm	6 mm

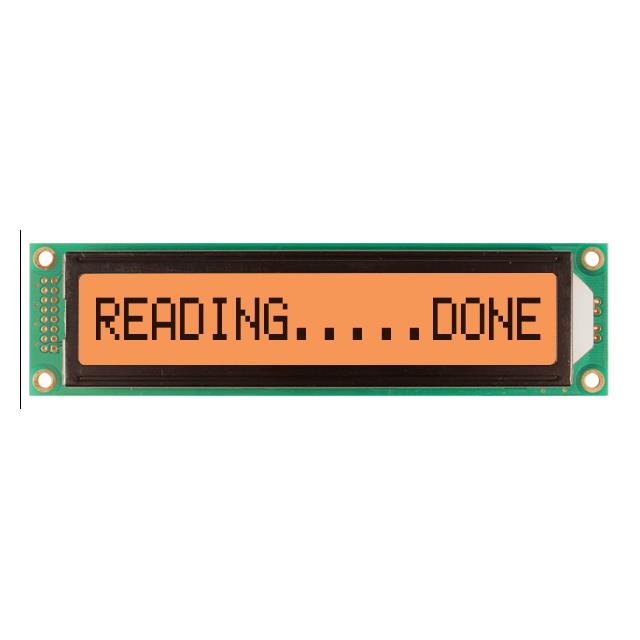

Newhaven Display Intl NHD-0116GZ-FSO-FBW	Parallel	120 mm	23 mm	16	16	1	Black	-20 ░C	70 °C	Orange	13 mm	151 mm	40 mm	Transflective				1.77 mm	5.5 V	4.7 V	SPLC780D ST7066U	FSTN - Film Super-Twisted Nematic	5 Dots	8 Dots	LED - Orange	1.15 mm	14.54 mm	6 mm

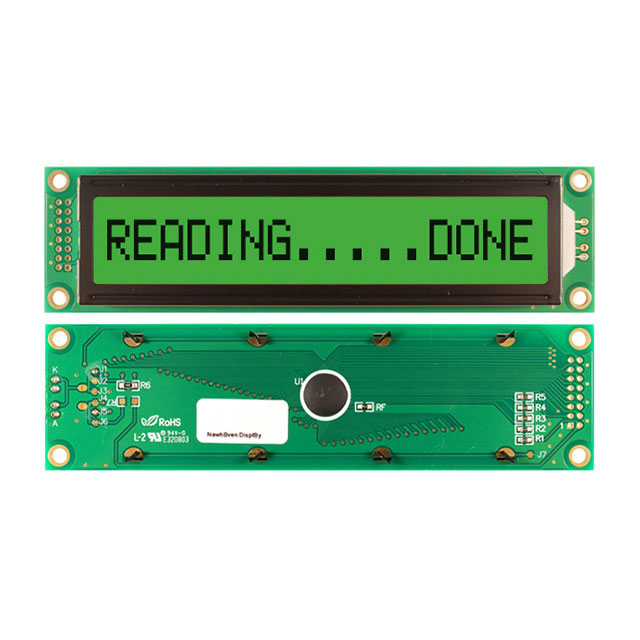

Newhaven Display Intl NHD-0116GZ-FSPG-FBW	Parallel	120 mm	23 mm	16	16	1	Black	-20 ░C	70 °C	Green	13 mm	151 mm	40 mm	Transflective				1.77 mm	5.5 V	4.7 V		FSTN - Film Super-Twisted Nematic	5 Dots	8 Dots	LED - Green	1.15 mm	14.54 mm	6 mm

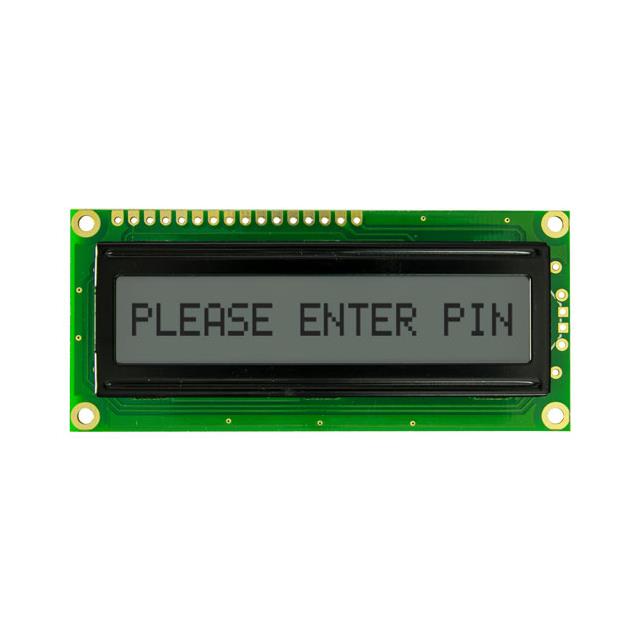

Newhaven Display Intl NHD-0116AZ-RN-GBW	Parallel	64 mm	13.8 mm	16	16	1	Blue	-20 ░C	70 °C	Gray	10 mm	80 mm	36 mm	Reflective	6.56 mm	3.07 mm	0.75 mm	0.55 mm	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	8 Dots

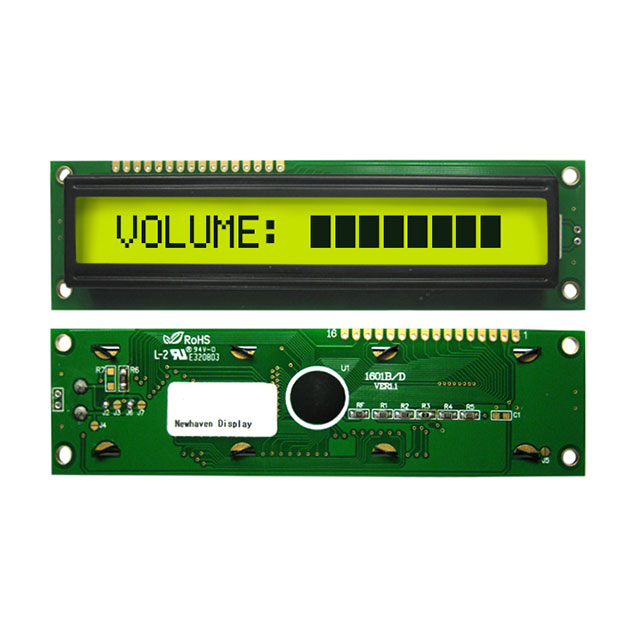

Newhaven Display Intl NHD-0116DZ-FL-YBW-33V	Parallel	99 mm	13 mm	16	16	1	Blue	-20 ░C	70 °C	Green	14 mm	122 mm	33 mm	Transflective		4.84 mm		1.1 mm			SPLC780D ST7066U	STN - Super-Twisted Nematic	5 Dots	7 Dots		0.92 mm			Cursor	9.66 mm	3.3 V
