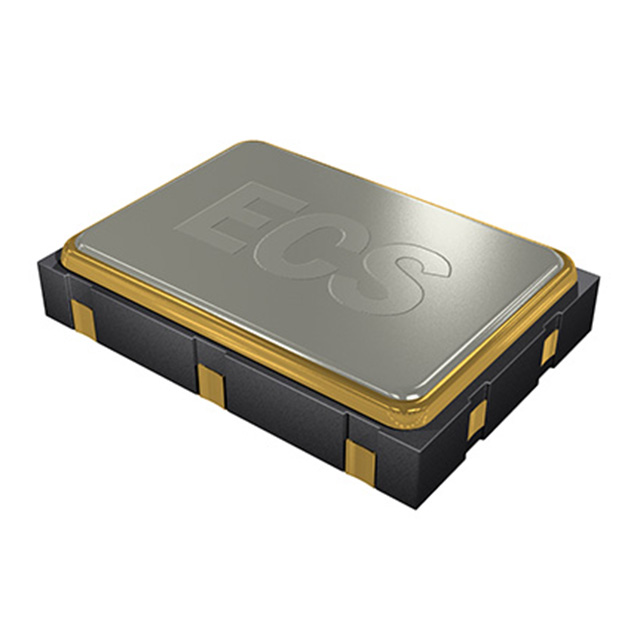

ESC-2520S Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS 40MHZ 3.3V 10PPM -40C +85C

Part	Current - Supply (Disable) (Max) [Max]	Current - Supply (Max) [Max]	Output	Function	Voltage - Supply	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Base Resonator [custom]	Frequency	Frequency Stability	Package / Case	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
ECS Inc. ECS-2520S33-400-FN-TR	10 µA	7 mA	HCMOS	Enable/Disable	3.3 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	40 MHz	10 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S33-200-EN-TR	10 µA	7 mA	HCMOS	Enable/Disable	3.3 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	20 MHz	15 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S25-250-FN-TR		7 mA	HCMOS	Enable/Disable	2.5 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	25 MHz	10 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S18-120-FN-TR		7 mA	HCMOS	Enable/Disable	1.8 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	12 MHz	10 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S30-100-FN-TR		7 mA	HCMOS	Enable/Disable	3 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	10 MHz	10 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S18-200-FN-TR	10 µA	7 mA	HCMOS	Enable/Disable	1.8 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	20 MHz	10 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S18-250-EN-TR		7 mA	HCMOS	Enable/Disable	1.8 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	25 MHz	15 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S30-240-FN-TR	10 µA	7 mA	HCMOS	Enable/Disable	3 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	24 MHz	10 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S25-500-FN-TR	10 µA	7 mA	HCMOS	Enable/Disable	2.5 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	50 MHz	10 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
ECS Inc. ECS-2520S30-160-EN-TR	10 µA	7 mA	HCMOS	Enable/Disable	3 V	2.5 mm	0.079 in	0.098 in	2 mm	Surface Mount	XO (Standard)	0.039 in	1 mm	Crystal	16 MHz	15 ppm	4-SMD No Lead	2	2.5	4-SMD	85 °C	-40 C
