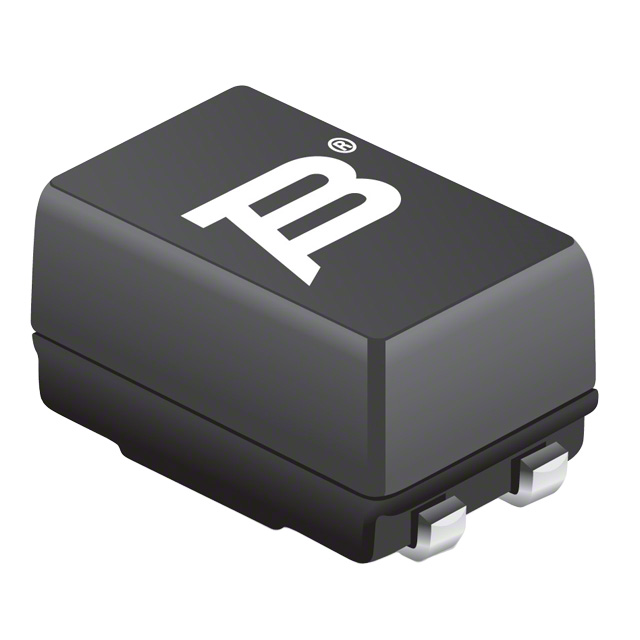

SRF0905 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FILTER, LINE, 470 µH, SRF0905 SERIES, 1 KOHM, 1.1 A, 9.2MM X 6MM X 5MM
| Part | Filter Type | DC Resistance (DCR) (Max) [Max] | Impedance @ Frequency | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Package / Case | Mounting Type | Current Rating (Max) [Max] | Number of Lines | Inductance @ Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Signal Line | 140 mOhm | 1 kOhms | 6 mm | 0.236 " | 0.362 in | 9.2 mm | Horizontal 4 PC Pad | Surface Mount | 1.1 A | 2 | 470 µH | -40 C | 105 ░C | 80 V | |
 Bourns Inc. | Signal Line | 250 mOhm | 800 Ohms | 6 mm | 0.236 " | 0.362 in | 9.2 mm | Horizontal 4 PC Pad | Surface Mount | 900 mA | 2 | 40 µH | -40 C | 105 ░C | 80 V | |
 Bourns Inc. | Signal Line | 310 mOhm | 1.5 kOhms | 6 mm | 0.236 " | 0.362 in | 9.2 mm | Horizontal 4 PC Pad | Surface Mount | 800 mA | 2 | 1 mH | -40 C | 105 ░C | 80 V | |
Bourns Inc. | Signal Line | 1.5 kOhms | 6 mm | 0.236 " | 0.362 in | 9.2 mm | Horizontal 4 PC Pad | Surface Mount | 800 mA | 2 | 50 µH | -40 C | 105 ░C | 80 V | 320 mOhm | |
Bourns Inc. | Signal Line | 900 mOhm | 4 kOhms | 6 mm | 0.236 " | 0.362 in | 9.2 mm | Horizontal 4 PC Pad | Surface Mount | 400 mA | 2 | 4700 µH | -40 C | 105 ░C | 80 V |
