735A16 Series
Manufacturer: Belden Inc.
Beta
⌘K

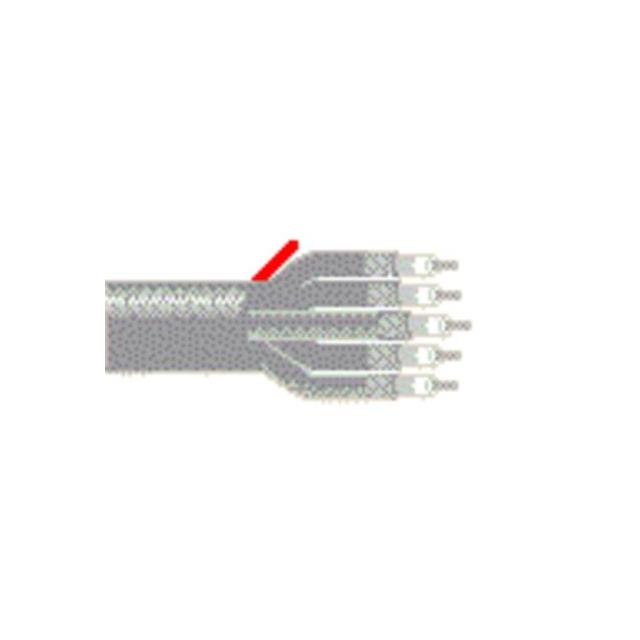

16 #26 COAX FRPVC
| Part | VoP, Velocity of Propagation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Length [x] | Length [x] | Jacket Color | Cable Type | Conductor Strand | Jacket (Insulation) Material | Impedance | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 76 | -40 C | 75 ░C | Copper Covered Silver Coated Steel | 1.96 mm | 0.077 in | 304.8 m | 1000 ft | Gray | Multi-Conductor - Riser | Solid | Poly-Vinyl Chloride (PVC) | 75 Ohms | Rip Cord | 16.15 mm | 0.636 in | 26 AWG |
