JRCW016 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 36-75V 28VOUT 16A TH AUTO RESTART NEG LGC

Part	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Output 1	Control Features	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Features	Applications	Number of Outputs	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Mounting Type	Supplier Device Package
OmniOn Power™ JRCW016A0R41Z	1.5 kV	85 °C	-40 C	448 W	28 V	Active Low Enable	36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	1	9-DIP Module	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole
OmniOn Power™ JRCW016A0R641-18Z	1.5 kV	85 °C	-40 C	448 W	28 V	Active Low Enable	36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	1	9-DIP Module	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole
OmniOn Power™ JRCW016A0R641Z	1.5 kV	85 °C	-40 °C		28 V		36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	1	Half Brick	2.39 "	12.8 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole	Half Brick
OmniOn Power™ JRCW016A0R41-18Z	1.5 kV	85 °C	-40 C	448 W	28 V	Active Low Enable	36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	1	9-DIP Module	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole

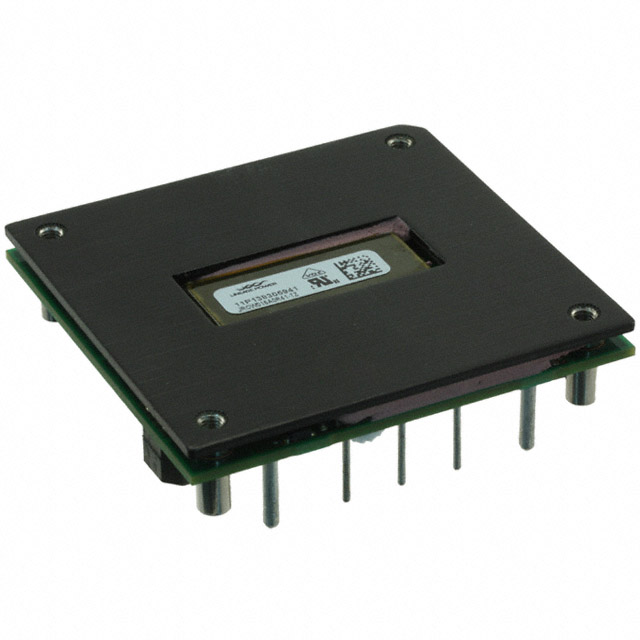

OmniOn Power™ JRCW016A0R41-TZ	1.5 kV	85 °C	-40 C	450 W	28 V	Active Low Enable	36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	1	9-DIP Module 1/2 Brick	2.39 "	12.8 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole
OmniOn Power™ JRCW016A0R41-18Z	1.5 kV	85 °C	-40 C	448 W	28 V	Active Low Enable	36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	1	9-DIP Module	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole
OmniOn Power™ JRCW016A0R41Z	1.5 kV	85 °C	-40 C	448 W	28 V	Active Low Enable	36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	1	9-DIP Module	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole
OmniOn Power™ JRCW016A0R641-18Z	1.5 kV	85 °C	-40 C	448 W	28 V	Active Low Enable	36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	1	9-DIP Module	2.39 "	12.7 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole
OmniOn Power™ JRCW016A0R41-TZ	1.5 kV	85 °C	-40 C	450 W	28 V	Active Low Enable	36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	1	9-DIP Module 1/2 Brick	2.39 "	12.8 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole
OmniOn Power™ JRCW016A0R641Z	1.5 kV	85 °C	-40 °C		28 V		36 V	75 V	16 A	Isolated Module	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	1	Half Brick	2.39 "	12.8 mm	0.5 in	57.7 mm	60.7 mm	2.27 in	93.5 %	Through Hole	Half Brick
