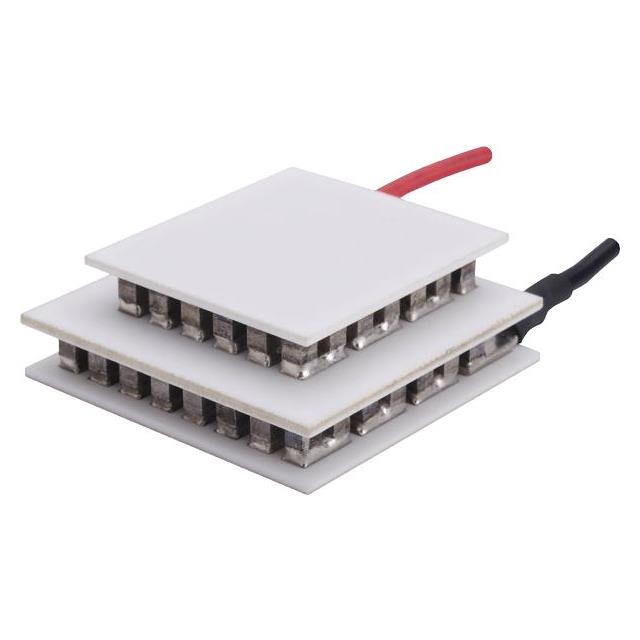

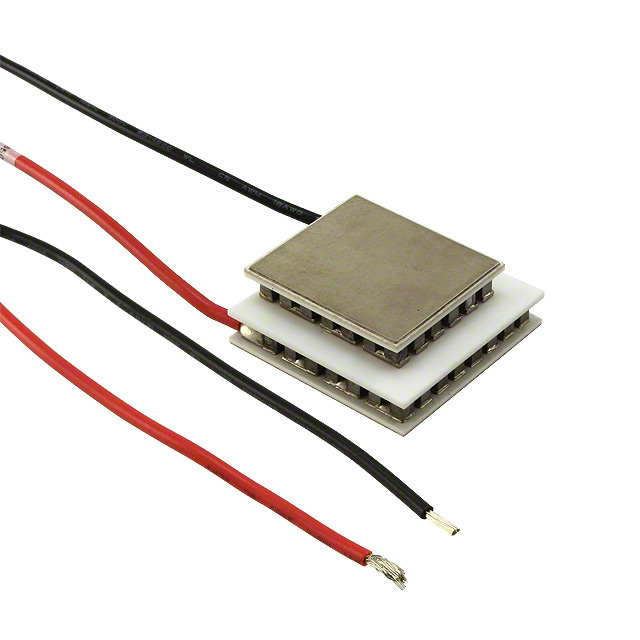

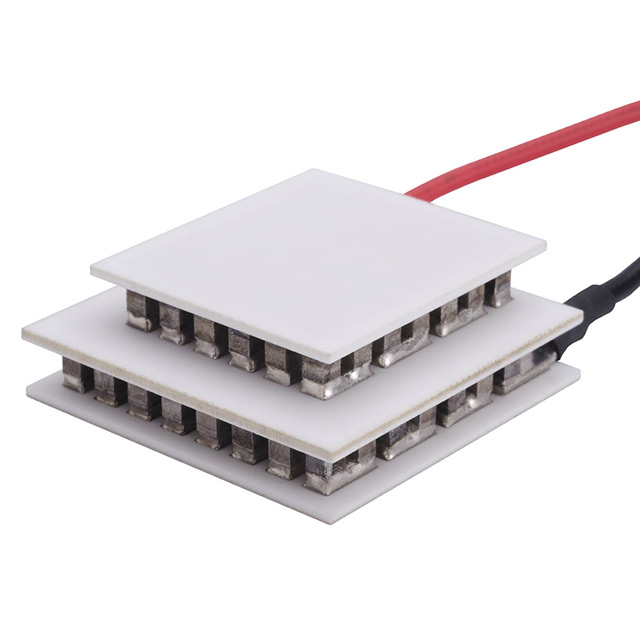

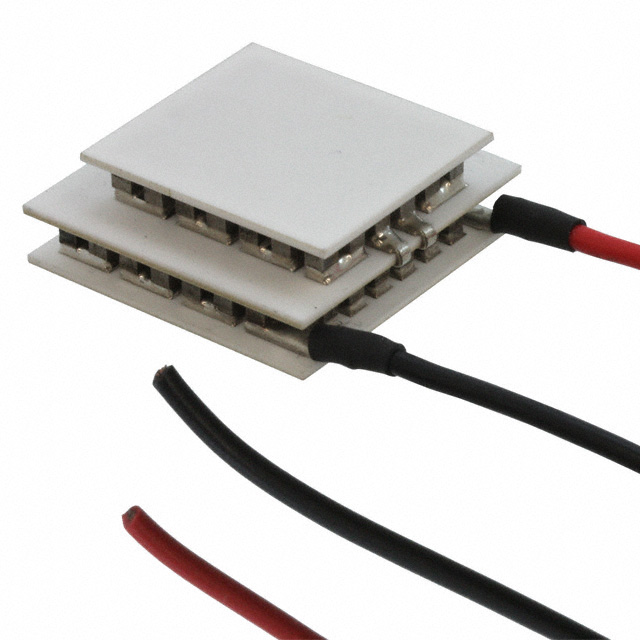

16503 Series
Manufacturer: Laird Thermal Systems, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
PELTIR MS2,051,22,25,22,25,11,W8
| Part | Features | Height | Maximum Power Dissipation (Qmax) | Current - Max | Voltage - Max | Number of Stages | Operating Temperature | Delta Tmax | Size / Dimension Shape | Size / Dimension Width | Size / Dimension Length |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | Lead Wires Non-Sealed | 10.72 mm | 10.5 W | 5.7 A | 3.5 V | 2 | 80 °C | 76 °C | Square | 29.7 mm | 29.7 mm |
 Laird Thermal Systems, Inc. | Lead Wires Non-Sealed | 10.92 mm | 10.5 W | 5.7 A | 3.5 V | 2 | 80 °C | 76 °C | Square | 29.7 mm | 29.7 mm |
