0461-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth [z]	Socket Depth [z]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Contact Material	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Accepts Pin Diameter [Max]
Mill-Max Manufacturing Corp. 0461-2-15-80-11-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.022 in	0.015 "	0.56 mm	30 Áin	0.76 Ám	Standard Tail
Mill-Max Manufacturing Corp. 0461-2-15-15-21-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.022 in	0.015 "	0.56 mm	10 Áin	0.25 Ám	Standard Tail
Mill-Max Manufacturing Corp. 0461-2-15-80-21-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.022 in	0.015 "	0.56 mm	10 Áin	0.25 Ám	Standard Tail
Mill-Max Manufacturing Corp. 0461-2-15-01-11-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.02 in	0.015 "		30 Áin	0.76 Ám	Standard Tail	0.51 mm

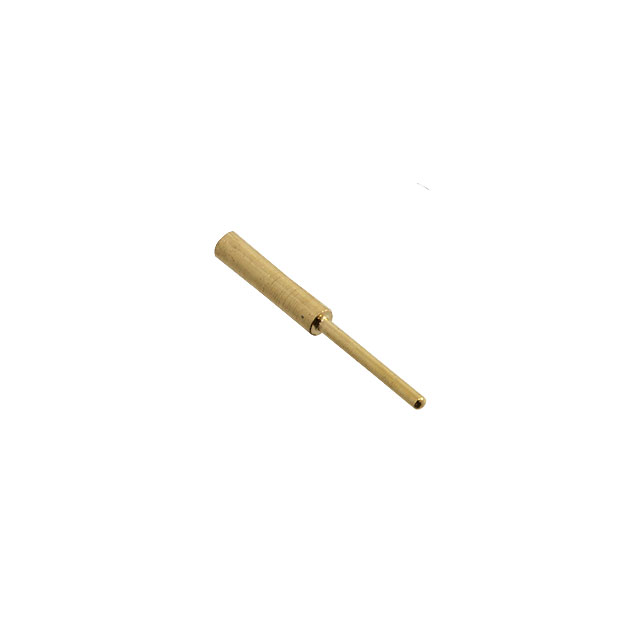

Mill-Max Manufacturing Corp. 0461-2-15-15-11-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.02 in	0.015 "		30 Áin	0.76 Ám	Standard Tail	0.51 mm

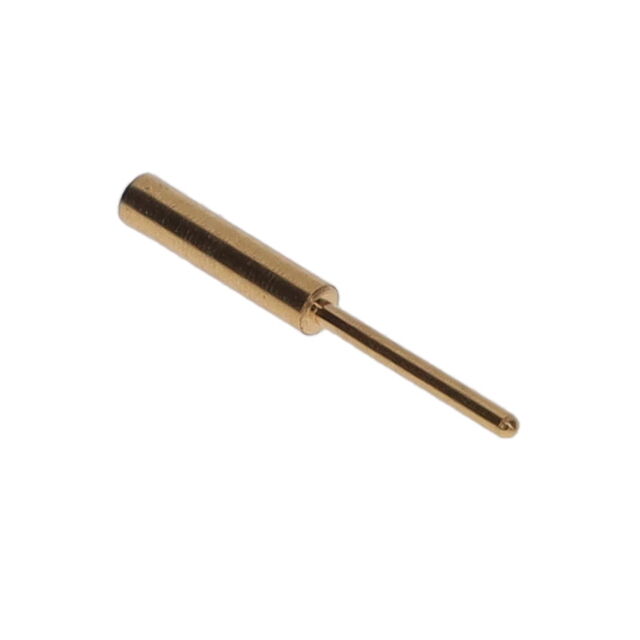

Mill-Max Manufacturing Corp. 0461-2-15-15-11-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.022 in	0.015 "	0.56 mm	10 Áin	0.25 Ám	Standard Tail
Mill-Max Manufacturing Corp. 0461-2-15-15-21-27-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.022 in	0.015 "	0.56 mm	30 Áin	0.76 Ám	Standard Tail
Mill-Max Manufacturing Corp. 0461-2-15-01-11-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.02 in	0.015 "		10 Áin	0.25 Ám	Standard Tail	0.51 mm
Mill-Max Manufacturing Corp. 0461-2-15-01-21-14-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Gold	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.022 in	0.015 "	0.56 mm	10 Áin	0.25 Ám	Standard Tail
Mill-Max Manufacturing Corp. 0461-2-15-01-21-02-04-0	-55 C	125 °C	0.041 in	1.04 mm	0.46 mm	0.018 in	Tin-Lead	0.355 in	9.02 mm	0.02 in	0.51 mm	3.81 mm	0.15 in	0.031 in	0.79 mm	Solder	Beryllium Copper	0.38 mm	0.022 in	0.015 "	0.56 mm	100 µin	2.54 µm	Standard Tail
