TLV7256 Series

6-V, micropower, dual comparator

Catalog

6-V, micropower, dual comparator

Part	Current - Input Bias (Max)	Current - Quiescent (Max) [Max]	Number of Elements	Type	CMRR, PSRR (Typ)	Voltage - Input Offset (Max) [Max]	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Current - Output (Typ)	Mounting Type	Package / Case [y]	Package / Case	Package / Case [y]	Propagation Delay (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]

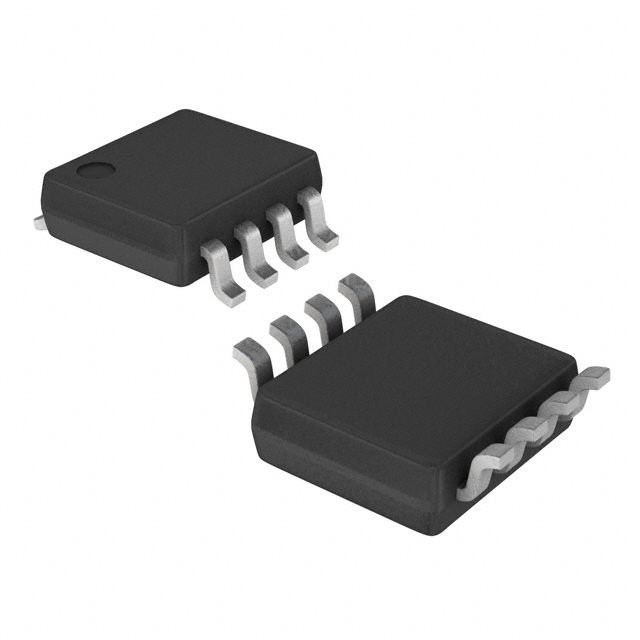

Texas Instruments TLV7256IDDUR	4 pA	70 µA	2	General Purpose	65 dB	7 mV	5 V	1.8 V	35 mA	Surface Mount	2.3 mm	8-VFSOP	0.091 in	680 ns	CMOS Push-Pull TTL	85 °C	-40 °C

Catalog

6-V, micropower, dual comparator

Key Features

• Low Supply Current. . .20 µA TypSingle Power SupplyRail-to-Rail Common-Mode Input Voltage RangePush-Pull Output CircuitLow Input-Bias CurrentAPPLICATIONSBattery Packs for Sensing Battery VoltageMP3 Players, Digital Cameras, PMPsCellular Phones, PDAs, Notebook ComputersTest EquipmentGeneral-Purpose Low-Voltage ApplicationsLow Supply Current. . .20 µA TypSingle Power SupplyRail-to-Rail Common-Mode Input Voltage RangePush-Pull Output CircuitLow Input-Bias CurrentAPPLICATIONSBattery Packs for Sensing Battery VoltageMP3 Players, Digital Cameras, PMPsCellular Phones, PDAs, Notebook ComputersTest EquipmentGeneral-Purpose Low-Voltage Applications

Description

The TLV7256 is a CMOS-type general-purpose dual comparator capable of single power-supply operation and using lower supply currents than the conventional bipolar comparators. Its push-pull output can connect directly to local ICs such as TTL and CMOS circuits. The TLV7256 is a CMOS-type general-purpose dual comparator capable of single power-supply operation and using lower supply currents than the conventional bipolar comparators. Its push-pull output can connect directly to local ICs such as TTL and CMOS circuits.
