R60500 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
BR2 / STRAIGHT PLUG CLAMP TYPE F
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Body Finish | Dielectric Material | Mating Cycles | Center Contact Plating | Center Contact Material | Impedance | Contact Termination | Connector Type | Housing Color | Mounting Type | Number of Ports | Cable Group | Frequency - Max [Max] | Connector Style | Shield Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

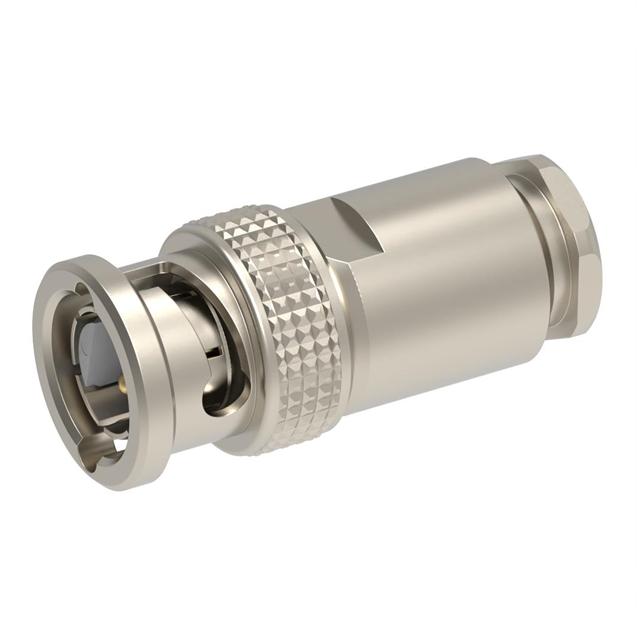

 Radiall USA, Inc. | -40 C | 100 °C | Brass | Nickel | Polyetherimide (PEI) | 500 | Gold | Brass | 78 Ohms | Solder | Plug Male Pin | Silver | Free Hanging (In-Line) | 1 | Twinaxial 4 | 500 MHz | BR2 | Clamp | Bayonet Lock |

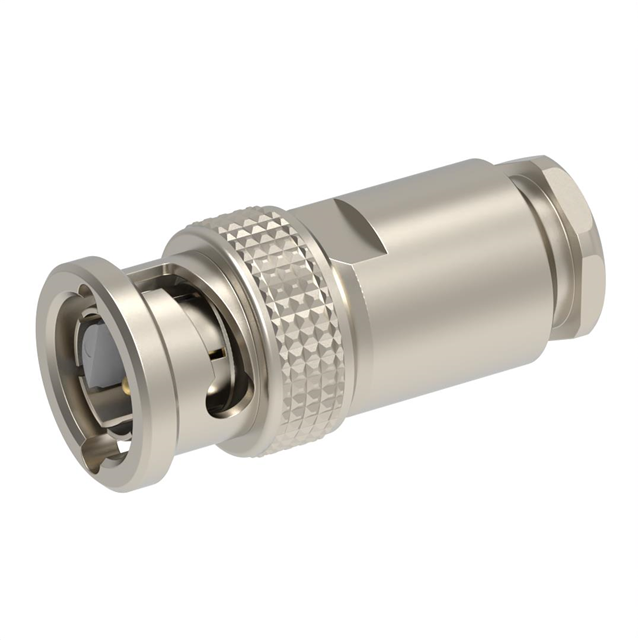

 Radiall USA, Inc. | -40 C | 100 °C | Beryllium Copper | Nickel | Polyamide (PA) Nylon | 50 Ohms | Solder | Plug Male Pin | Silver | Free Hanging (In-Line) | 1 | 500 MHz | Clamp | Bayonet Lock |
