DF30 Series

Catalog

DIOE MODULE 1600V 30A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Diode Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Package / Case	Technology	Voltage - Peak Reverse (Max)	Supplier Device Package	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
SanRex Corporation DF30NA160F1	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard	1.6 kV	5-SIP	14 mA

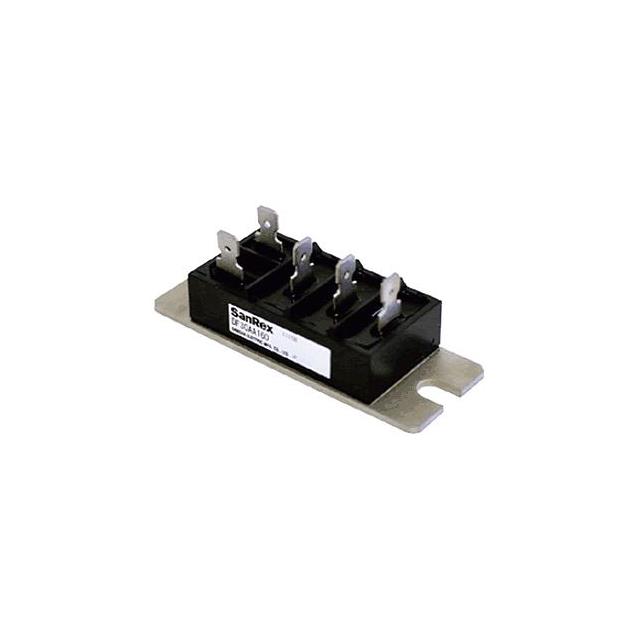

SanRex Corporation DF30AA120	150 °C	-40 °C	Chassis Mount	Three Phase	30 A		Module	Standard			3 mA	1.2 kV	1.3 V
SanRex Corporation DF30NA80F1	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard		5-SIP		800 V

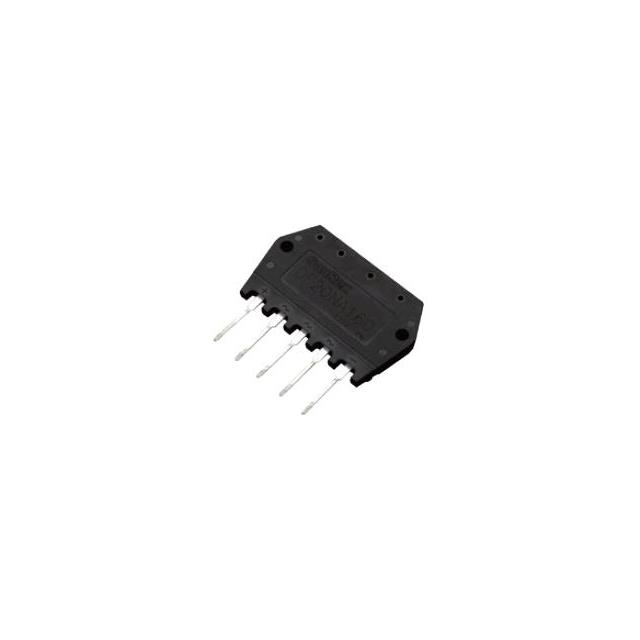

SanRex Corporation DF30NA80S	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard		5-SIP		800 V
SanRex Corporation DF30NA160S	150 °C	-40 °C	Through Hole	Three Phase	30 A	1.2 V	5-SIP Exposed Pad	Standard	1.6 kV	5-SIP	14 mA
SanRex Corporation DF30AA160	150 °C	-40 °C	Chassis Mount	Three Phase	30 A		Module	Standard	1.6 kV		3 mA		1.3 V
