DC37 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN D-SUB RCPT 37POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Dielectric Material | Color | Voltage Rating | Contact Material | Number of Rows [custom] | Connector Style | Contact Finish | Backset Spacing | Backset Spacing | Mounting Type | Number of Positions | Connector Type | Flange Feature | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout | Current Rating (Amps) | Termination | Features | Contact Finish Thickness | Shell Material, Finish | Wire Gauge [Max] | Wire Gauge [Min] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

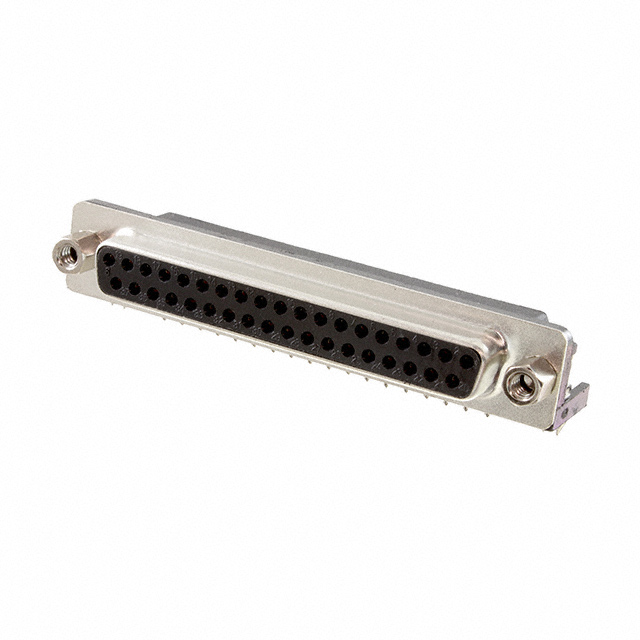

 Adam Tech | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | 2 | D-Sub | Gold | 0.319 in | 8.1 mm | Right Angle Through Hole | 37 | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | UL94 V-0 | 4 | DC C | 3 A | Solder | Board Lock | |||||

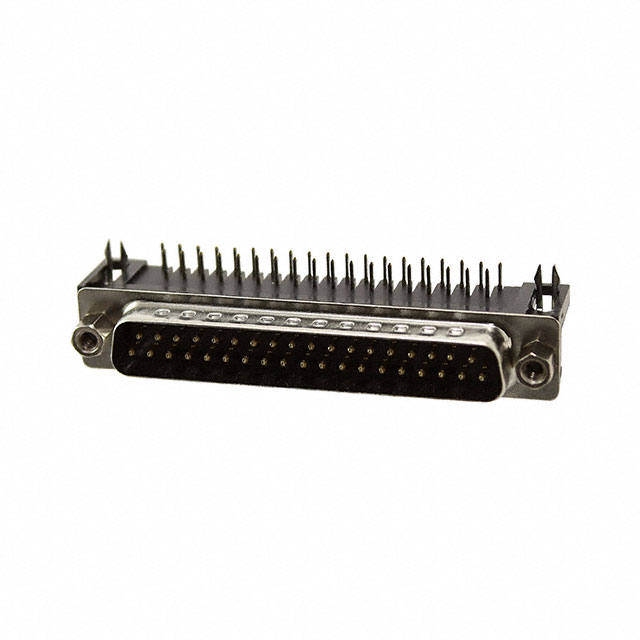

 Adam Tech | -40 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | 2 | D-Sub | Gold | 0.319 in | 8.1 mm | Right Angle Through Hole | 37 | Plug Male Pins | 4-40 Mating Side Female Screwlock | UL94 V-0 | 4 | DC C | Solder | Board Lock Grounding Indents | Flash | Steel | ||||

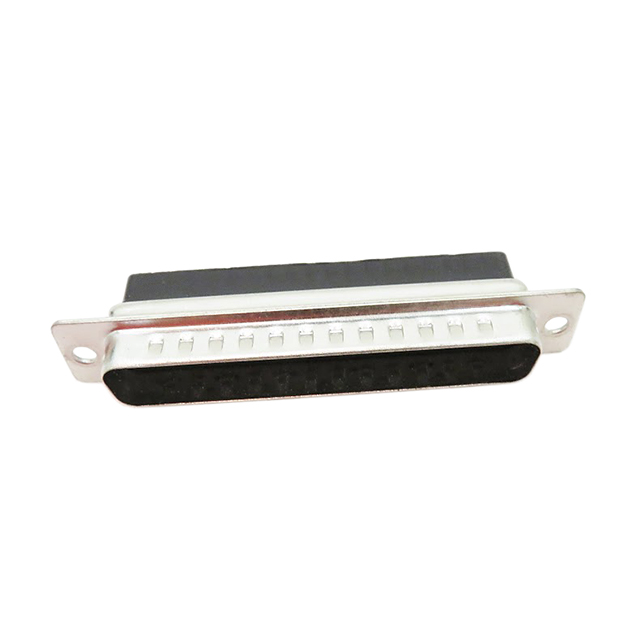

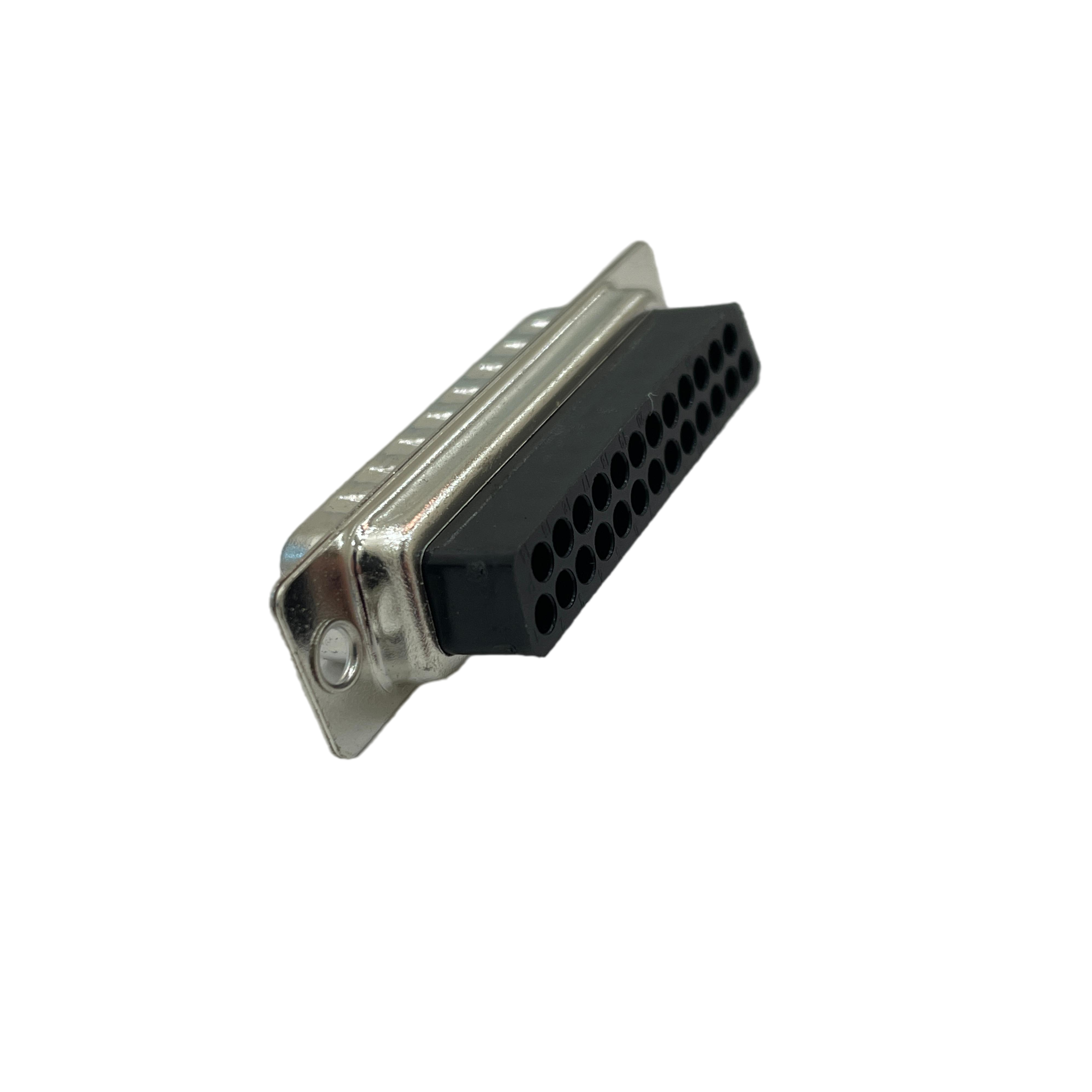

 Adam Tech | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Black | Copper Alloy | 2 | D-Sub | Gold | Free Hanging (In-Line) | 37 | Plug Male Pins | Housing/Shell (Unthreaded) | UL94 V-0 | 4 | DC C | Crimp | Grounding Indents | Flash | |||||||||

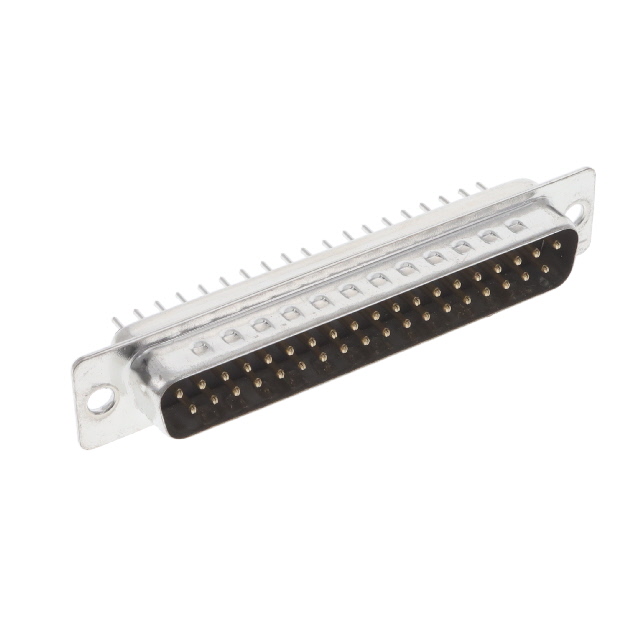

 Adam Tech | -55 C | 85 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | 2 | D-Sub | Gold | Through Hole | 37 | Plug Male Pins | Housing/Shell (Unthreaded) | UL94 V-0 | 4 | DC C | Solder | Grounding Indents | Flash | ||||||||
 Adam Tech | -65 ░C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Phosphor Bronze | 2 | D-Sub | Gold | Free Hanging (In-Line) | 37 | Receptacle Female Sockets | Housing/Shell | UL94 V-0 | 4 | DC C | 5 A | IDC Ribbon Cable | Flash | 30 AWG | 27.5 AWG | 4-40 | |||||

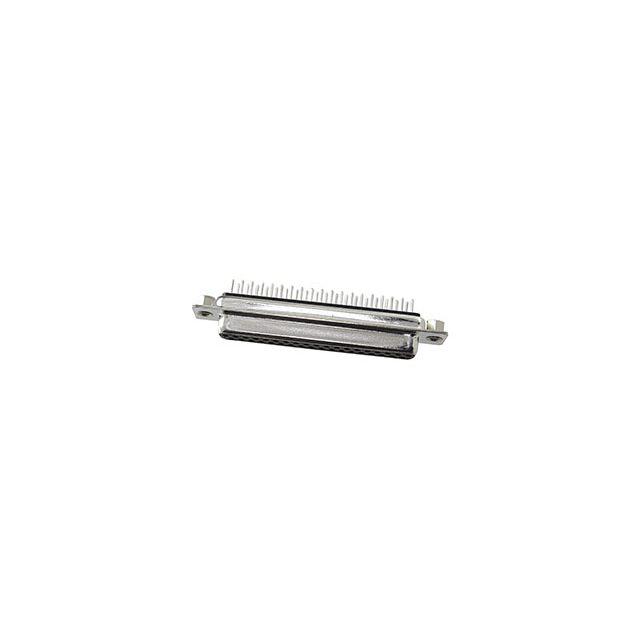

 Adam Tech | -65 ░C | 125 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Phosphor Bronze | 2 | D-Sub | Gold | Through Hole | 37 | Receptacle Female Sockets | Board Side (4-40) | UL94 V-0 | 4 | DC C | 5 A | Solder | Flash | ||||||||
 Adam Tech | -20 ░C | 85 °C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | 2 | D-Sub | Gold | Free Hanging (In-Line) | 37 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | UL94 V-0 | 4 | DC C | 3 A | Flash | ||||||||
 Adam Tech | -55 C | 105 ░C | Thermoplastic | Black | 250 VAC | Copper Alloy | 2 | D-Sub | Gold | Free Hanging (In-Line) | 37 | Plug Male Pins | Housing/Shell | UL94 V-0 | 4 | DC C | 3 A | IDC Ribbon Cable | Grounding Indents | 4-40 | |||||||
 Adam Tech | -55 C | 125 °C | Thermoplastic Glass Filled | Black | 600 V | Brass | 2 | D-Sub | Gold | Through Hole | 37 | Receptacle Female Sockets | Housing/Shell | UL94 V-0 | 4 | DC C | 5 A | Wire Wrap | Flash | Nickel Plated Steel | 4-40 | ||||||

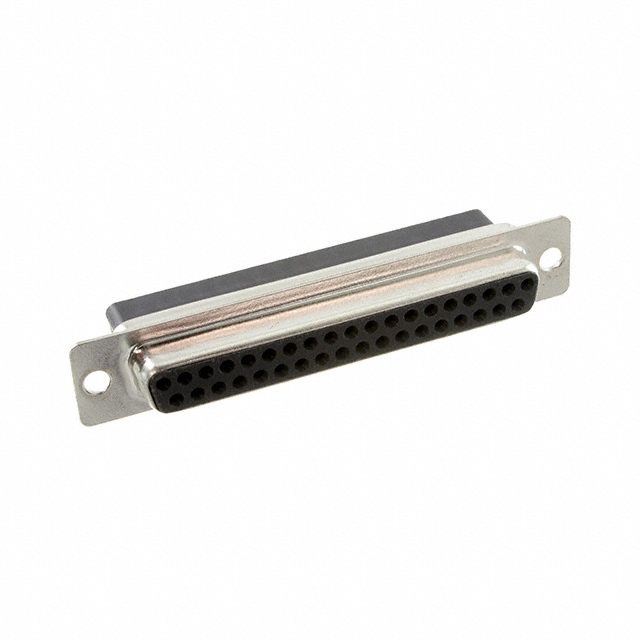

 Adam Tech | -55 C | 105 ░C | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | Black | 250 VAC | Copper Alloy | 2 | D-Sub | Gold | Free Hanging (In-Line) | 37 | Receptacle Female Sockets | Housing/Shell (Unthreaded) | UL94 V-0 | 4 | DC C | Crimp | Flash |
