Cd0 Series Series

AC Power Entry Modules CD PWR ENTRY MODULE W. FILTER 6A 8 mm DIP Coded Rotary DIP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

AC Power Entry Modules CD PWR ENTRY MODULE W. FILTER 6A 8 mm DIP Coded Rotary DIP

Part	Contact Finish	Actuator Type	Termination Style	Mounting Type	Body Material	Contact Material	Mechanical Life	Electrical Life	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Features	Circuit	Number of Positions	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Height Above Board	Height Above Board	Number of Positions

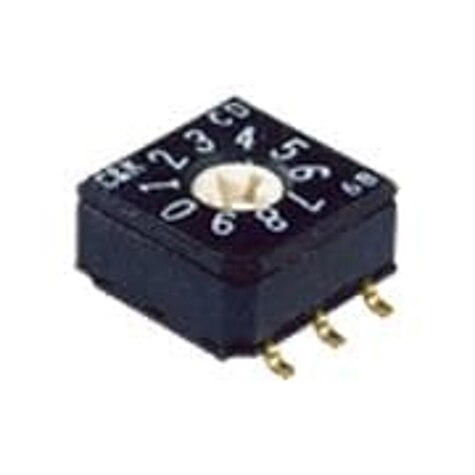

Littelfuse/Commercial Vehicle Products CD10RM0SBR	Gold	Rotary for Tool	Gull Wing	Surface Mount	Polyphenylene Sulfide (PPS)	Copper Alloy	20000 Cycles	20000 Steps	Flush Recessed	0.1 in	Full	2.54 mm	Process Sealed	BCD	10	8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC
Littelfuse/Commercial Vehicle Products CD10CM0SB	Gold	Rotary for Tool	Gull Wing	Surface Mount	Polyphenylene Sulfide (PPS)	Copper Alloy	20000 Cycles	20000 Steps	Flush Recessed	0.1 in	Full	2.54 mm	Process Sealed	BCD Complement	10	8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC

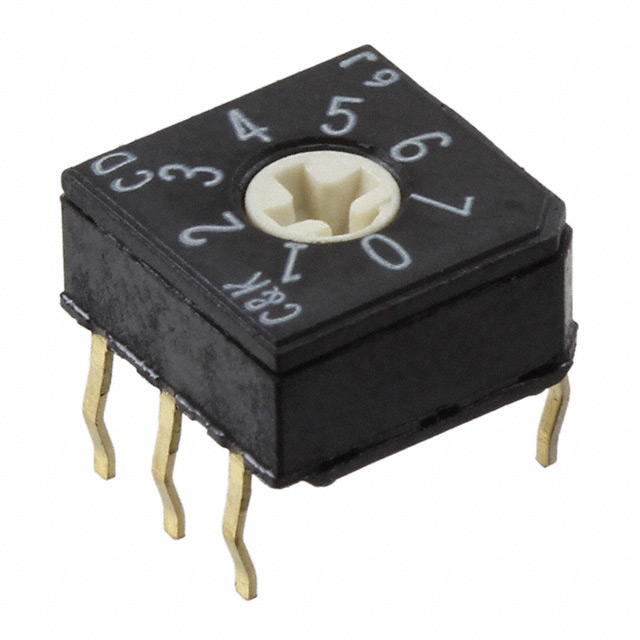

Littelfuse/Commercial Vehicle Products CD08RM0CB	Gold	Rotary for Tool	PC Pin	Through Hole	Polyphenylene Sulfide (PPS)	Copper Alloy		12000 Steps	Flush Recessed	0.1 in	Full	2.54 mm	Process Sealed	Octal	8	8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC

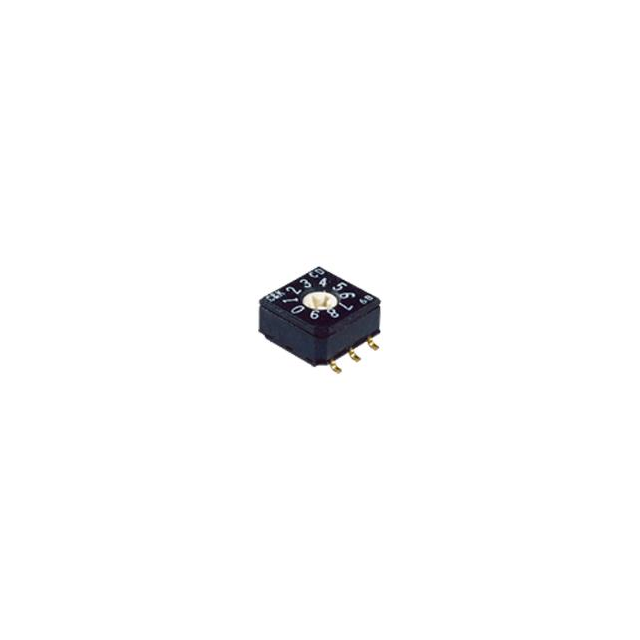

Littelfuse/Commercial Vehicle Products CD08RM0AB	Gold	Rotary for Tool	PC Pin	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	Copper Alloy		12000 Steps	Flush Recessed	0.1 in	Full	2.54 mm	Process Sealed	Octal	8	8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC	0.34 in	8.64 mm
Littelfuse/Commercial Vehicle Products CD10CM0SBR	Gold	Rotary for Tool	Gull Wing	Surface Mount	Polyphenylene Sulfide (PPS)	Copper Alloy	20000 Cycles	20000 Steps	Flush Recessed	0.1 in	Full	2.54 mm		BCD Complement	10	8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC
Littelfuse/Commercial Vehicle Products CD16RM0SB	Gold	Rotary for Tool	Gull Wing	Surface Mount	Polyphenylene Sulfide (PPS)	Copper Alloy	20000 Cycles	20000 Steps	Flush Recessed	0.1 in	Full	2.54 mm	Process Sealed	Hexadecimal		8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC			16
Littelfuse/Commercial Vehicle Products CD16RM0CB	Gold	Rotary for Tool	PC Pin	Through Hole	Polyphenylene Sulfide (PPS)	Copper Alloy	20000 Cycles	20000 Steps	Flush Recessed	0.1 in	Full	2.54 mm	Process Sealed	Hexadecimal		8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC			16
Littelfuse/Commercial Vehicle Products CD10CM0CB	Gold	Rotary for Tool	PC Pin	Through Hole	Polyphenylene Sulfide (PPS)	Copper Alloy	20000 Cycles	20000 Steps	Flush Recessed	0.1 in	Full	2.54 mm		BCD Complement	10	8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC
Littelfuse/Commercial Vehicle Products CD16CM0AB	Gold	Rotary for Tool	PC Pin	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	Copper Alloy	20000 Cycles	20000 Steps	Flush Recessed	0.1 in	Full	2.54 mm	Process Sealed	Hexadecimal Complement		8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC	0.34 in	8.64 mm	16
Littelfuse/Commercial Vehicle Products CD16CM0CB	Gold	Rotary for Tool	PC Pin	Through Hole	Polyphenylene Sulfide (PPS)	Copper Alloy	20000 Cycles	20000 Steps	Flush Recessed	0.1 in	Full	2.54 mm	Process Sealed	Hexadecimal Complement		8 mm	0.315 in	-25 °C	85 °C	20 VAC/DC			16

Catalog

AC Power Entry Modules CD PWR ENTRY MODULE W. FILTER 6A 8 mm DIP Coded Rotary DIP

Key Features

• Process sealed – withstands soldering and cleaning

• Compact size saves space – 36% smaller than traditional 10mm DIP

• Crisp, positive detent ensures actuation

Description

Designers of address switching applications, data storage devices and instrumentation applications turn to C&K’s CD series 8mm DIP coded rotary DIP switches because of their compact size and resistance to harsh environments. The CD series are process sealed to withstand soldering and cleaning, are 36% smaller than traditional 10mm DIP – saving critical space – and are built with a crisp, positive detent that ensures actuation.
