EXN-23365 Series
Manufacturer: BUD INDUSTRIES
Beta
⌘K

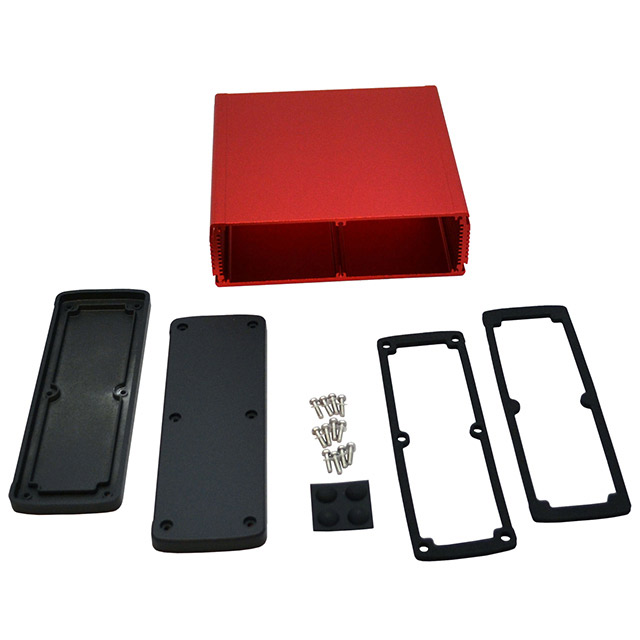

METAL ENCLOSURE, EXTRUDED, SMALL, EXTRUDED ALUMINUM, POLYCARBONATE, 61.1 MM, 169 MM, 177.7 MM, IP66
| Part | Weight [custom] | Weight [custom] | Material | Color | Area (L x W) | Area (L x W) | Container Type | Height [z] | Height [z] | Design | Material Flammability Rating | Thickness | Thickness | Ratings | Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BUD INDUSTRIES | 1.3 lbs | 589.7 g | Metal Aluminum with Plastic Polycarbonate Panels | Clear Gold | 46.6 in² | 301 cm² | Box | 61.1 mm | 2.406 in | End Panel(s) | UL94 V-0 | 0.11 in | 2.79 mm | IP66 | Card Guides Sealing Gaskets | 177.69 mm | 6.654 in | 169 mm | 6.996 " | ||
 BUD INDUSTRIES | Aluminum Metal | Black Red | 46.6 in² | 301 cm² | Box | 61.1 mm | 2.406 in | End Panel(s) | 0.11 in | 2.79 mm | IP66 | Card Guides Sealing Gaskets | 177.69 mm | 6.654 in | 169 mm | 6.996 " | 1.7 lbs | 771.1 g |
