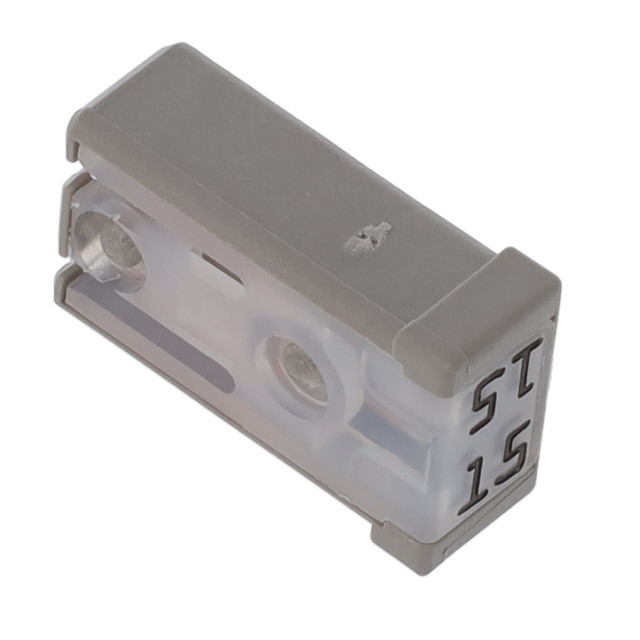

0695015.PXPS Series
Fuse - MCase+ 32VDC Slotted 15A
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
Fuse - MCase+ 32VDC Slotted 15A
Beta
⌘K
Fuse - MCase+ 32VDC Slotted 15A
Fuse - MCase+ 32VDC Slotted 15A
Fuse - MCase+ 32VDC Slotted 15A
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Breaking Capacity @ Rated Voltage | Response Time | Current Rating (Amps) | Voltage Rating - DC | DC Cold Resistance | Mounting Type | Melting I²t | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Fuse Type | Package / Case | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | 125 °C | -40 °C | 1 kA | Slow Blow | 15 A | 32 V | 0.0048 Ohms | Requires Holder | 295 | 10.7 mm | 17.5 mm | 6.2 mm | 0.244 " | 0.421 " | 0.689 " | Board Mount | Auto Link | Gray |
