M0224SD Series

Catalog

MODULE VF CHAR 2X24 5.34MM

Part	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Display Type	Format [y]	Format [x]	Character Size [z]	Character Size [y]	Interface	Display Format [x]	Display Format [y]	Viewing Area [y]	Viewing Area [x]

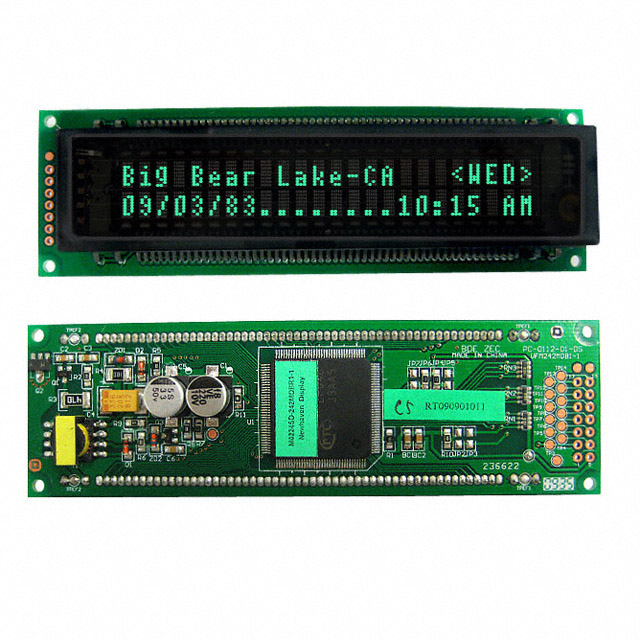

Newhaven Display Intl M0224SD-242MDBR1-1	16.5 mm	36 mm	118 mm	5.5 V	4.5 V	-20 ░C	70 °C	Character	8 Dots	5 Dots	5.29 mm	2.1 mm	Parallel	24	2	11.5 mm	84.2 mm
