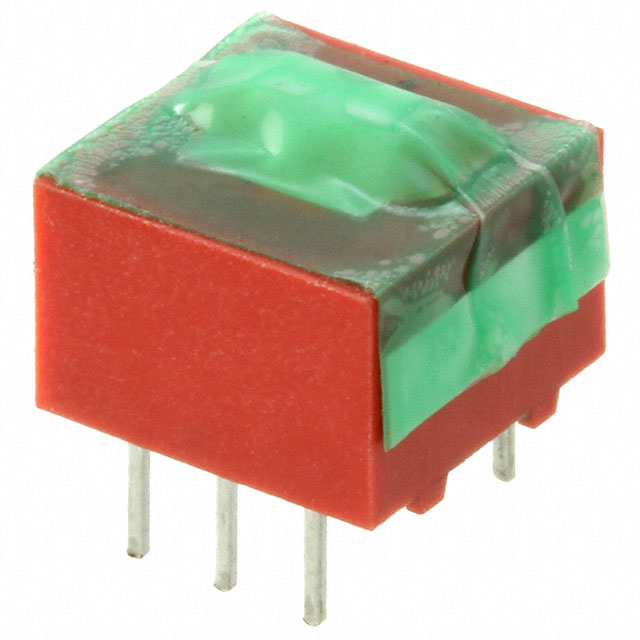

78G01 Series
Manufacturer: Grayhill Inc.
Catalog
SWITCH SLIDE DIP 3PST 0.15A 30V
| Part | Body Material | Length | Length | Mechanical Life | Electrical Life | Voltage Rating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Actuator Level | Number of Positions | Height Above Board [z] | Height Above Board [z] | Pitch | Pitch | Contact Material | Termination Style | Actuator Type | Washable | Features | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Thermoplastic | 9.65 mm | 0.38 in | 2000 Cycles | 2000 Steps | 30 VDC | Through Hole | 85 °C | -40 C | Gold | Raised | 1 | 0.315 in | 8 mm | 2.54 mm | 0.1 " | Copper Alloy | PC Pin | Slide (Standard) | Tape Seal | 3PST | |
 Grayhill Inc. | Plastic | 9.65 mm | 0.38 in | 2000 Cycles | 10000 Cycles | 30 VDC | Right Angle Through Hole | 85 °C | -40 C | Gold | Raised | 1 | 2.54 mm | 0.1 " | Copper Alloy | PC Pin | Slide (Standard) | 3PST |
