18-237 Series
Manufacturer: EAO
Beta
⌘K

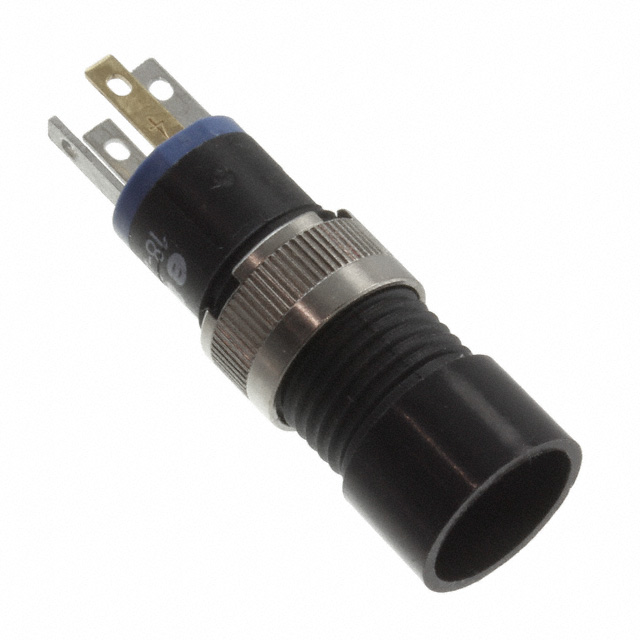

SWITCH PB SPST-NO 0.1A 42V
| Part | Electrical Life | Mechanical Life | Voltage Rating - AC | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Actuator Type | Current Rating (Amps) | Circuit | Ingress Protection | Switch Function | Type | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 50000 Cycles | 1000000 Cycles | 42 V | 42 V | 8 mm | Panel Mount Front | -25 °C | 65 °C | Solder Lug | Button Round | 100 mA | SPST-NO | IP40 | Off-On | Standard | No Marking |
