ECS-HCMPI-0402LRQ Series

Manufacturer: ECS Inc.

Catalog

FIXED IND 1UH 11A 0.0117OHM SMD

Part	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Shielding	Current Rating (Amps)	Tolerance	Mounting Type	Current - Saturation (Isat)	Ratings	Inductance Frequency - Test	Inductance	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR)

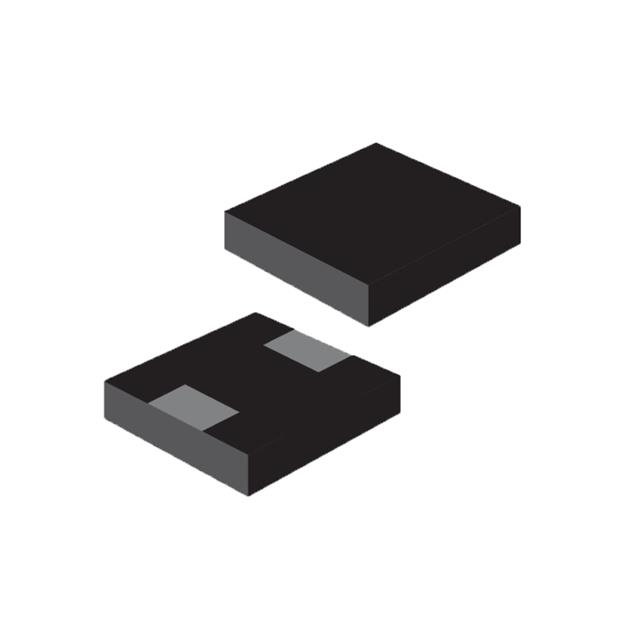

ECS Inc. ECS-HCMPI-0402LRQ-1R0M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C	11.7 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	11 A	20 %	Surface Mount	8 A	AEC-Q200	100 kHz	1 µH	Molded	2.1 mm	0.083 in
ECS Inc. ECS-HCMPI-0402LRQ-R82M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C	9.5 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	11.5 A	20 %	Surface Mount	9 A	AEC-Q200	100 kHz	820 nH	Molded	2.1 mm	0.083 in
ECS Inc. ECS-HCMPI-0402LRQ-R68M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C	8.2 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	12 Amps	20 %	Surface Mount	10 A	AEC-Q200	100 kHz	0.68 µH	Molded	2.1 mm	0.083 in
ECS Inc. ECS-HCMPI-0402LRQ-2R0M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C		0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	8.2 A	20 %	Surface Mount	5 A	AEC-Q200	100 kHz	2 µH	Molded	2.1 mm	0.083 in	23.3 mOhm
ECS Inc. ECS-HCMPI-0402LRQ-R47M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C		0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	13.2 A	20 %	Surface Mount	12.5 A	AEC-Q200	100 kHz	470 nH	Molded	2.1 mm	0.083 in	6.8 mOhm
ECS Inc. ECS-HCMPI-0402LRQ-2R2M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C	23.5 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	8 A	20 %	Surface Mount	4.8 A	AEC-Q200	100 kHz	2.2 µH	Molded	2.1 mm	0.083 in
ECS Inc. ECS-HCMPI-0402LRQ-3R3M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C	38.3 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	5.5 Amps	20 %	Surface Mount	4.4 A	AEC-Q200	100 kHz	3.3 µH	Molded	2.1 mm	0.083 in
ECS Inc. ECS-HCMPI-0402LRQ-1R2M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C		0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	9.5 A	20 %	Surface Mount	7.5 A	AEC-Q200	100 kHz	1.2 µH	Molded	2.1 mm	0.083 in	13.4 mOhm
ECS Inc. ECS-HCMPI-0402LRQ-1R5M-T	0402	1616 (4040 Metric) Nonstandard	125 °C	-40 C	15.8 mOhm	0.161 in	4.1 mm	0.161 "	4.1 mm	Shielded	9.1 A	20 %	Surface Mount	6.7 A	AEC-Q200	100 kHz	1.5 µH	Molded	2.1 mm	0.083 in
