YW04020005 Series
Manufacturer: YS TECH USA
Beta
⌘K

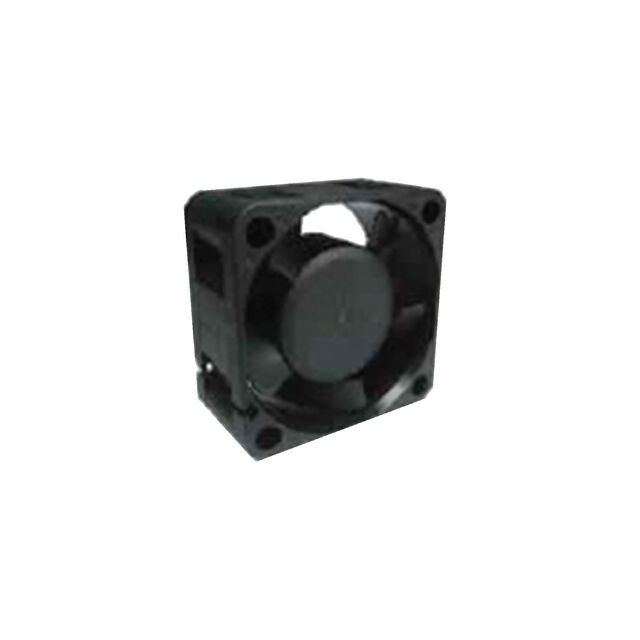

FAN AXIAL 40X20MM 5VDC WIRE
| Part | Current Rating (Amps) | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Lifetime @ Temp. | Power (Watts) | Voltage - Rated | Air Flow | Air Flow | Noise | RPM | Width [y] | Size / Dimension [x] | Size / Dimension [z] | Fan Type | Termination | Bearing Type | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | 60 mA | Polybutylene Terephthalate (PBT) | 5.5 V | 4 VDC | 40 °C 50000 Hrs | 300 mW | 5 V | 6.1 CFM | 0.171 m³/min | 17 dB | 4500 RPM | 20 mm | 40 mm | 40 mm | Tubeaxial | 2 Wire Leads | Sintec | 27.6 Pa | 0.111 in H2O |
