726-059 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 59POS 0.125

Part	Material - Insulation	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Positions	Card Type	Pitch	Pitch	Contact Finish	Contact Material	Read Out	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Gender	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Number of Positions/Bay/Row [custom]	Number of Rows
EDAC Inc. 726-059-540-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	59	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	Copper Alloy	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30 Áin	0.76 Ám	Press-Fit Wire Wrap	59	1
EDAC Inc. 726-059-541-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	59	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	Copper Alloy	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30 Áin	0.76 Ám	Press-Fit Wire Wrap	59	1
EDAC Inc. 726-059-525-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	59	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	Copper Alloy	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30 Áin	0.76 Ám	Press-Fit	59	1

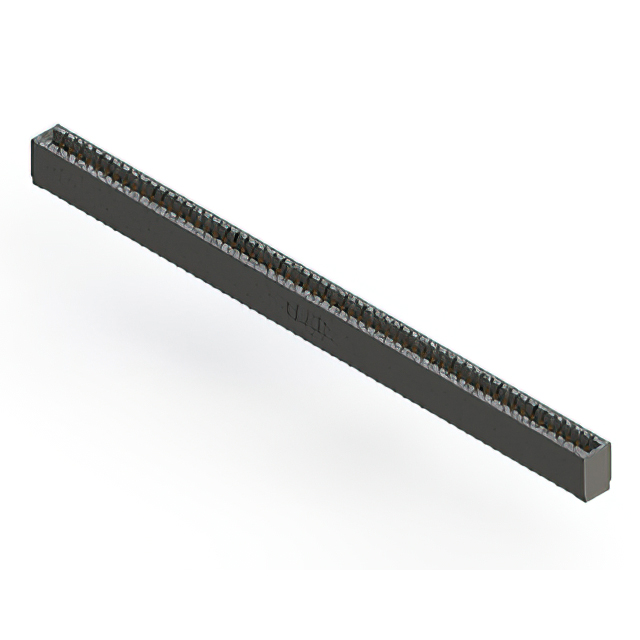

EDAC Inc. 726-059-520-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	59	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	Copper Alloy	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30 Áin	0.76 Ám	Press-Fit	59	1
EDAC Inc. 726-059-553-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	59	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	Copper Alloy	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30 Áin	0.76 Ám	Press-Fit Wire Wrap	59	1
EDAC Inc. 726-059-545-101	Polyester Thermoplastic	1	-40 C	105 ░C	Black	59	Non Specified - Single Edge	3.18 mm	0.125 in	Gold	Copper Alloy	Single	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	30 Áin	0.76 Ám	Press-Fit Wire Wrap	59	1
