000865 Series

Manufacturer: Molex

Catalog

CONN 22-30AWG CRIMP GOLD

Part	Pin or Socket	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish
Molex 0008650814	Non-Gendered	Crimp	0.38 µm	15 µin	22 AWG	30 AWG	Gold

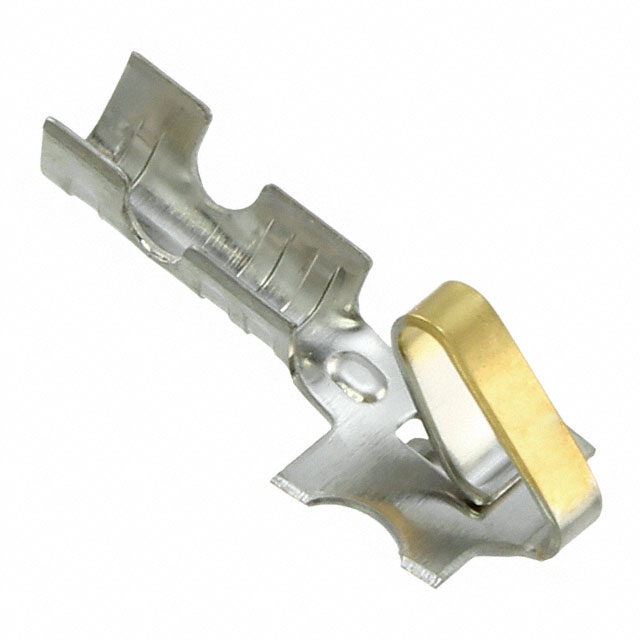

Molex 0008650815	Non-Gendered	Crimp	0.38 µm	15 µin	22 AWG	30 AWG	Gold
Molex 0008650813	Non-Gendered	Crimp	0.38 µm	15 µin	22 AWG	30 AWG	Gold
Molex 0008650817	Non-Gendered	Crimp	1.27 µm	50 µin	22 AWG	30 AWG	Gold
Molex 0008650105	Non-Gendered	Crimp	0.38 µm	15 µin	22 AWG	30 AWG	Gold

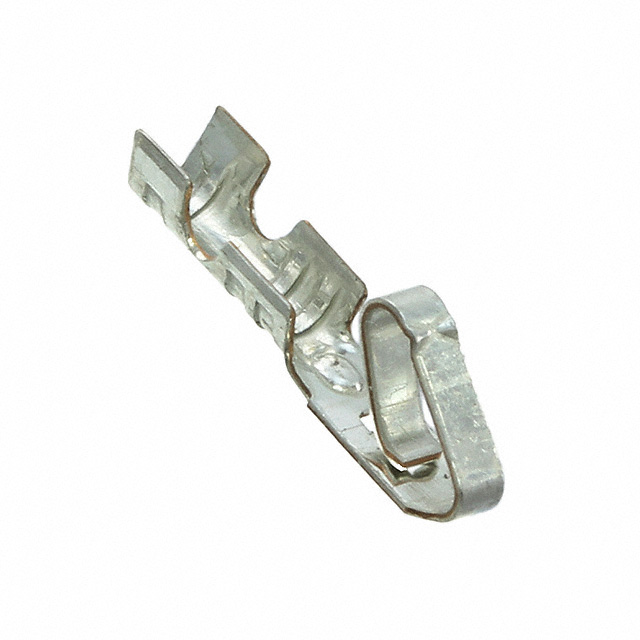

Molex 0008650805	Non-Gendered	Crimp	2.54 µm	100 µin	22 AWG	30 AWG	Tin

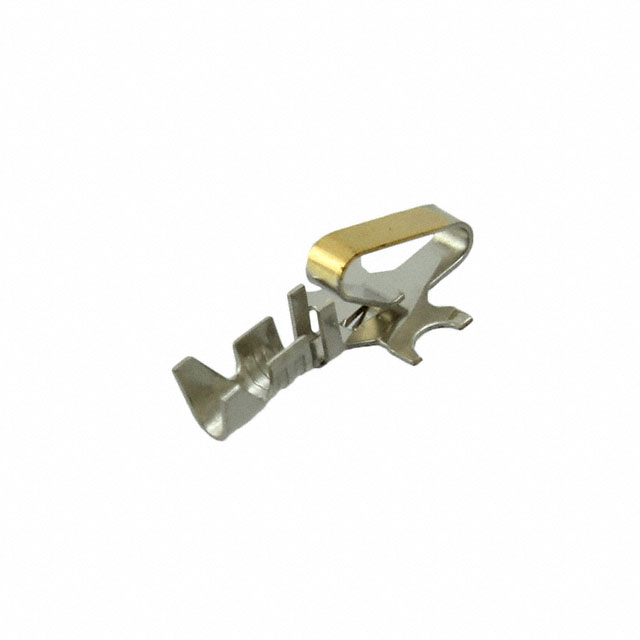

Molex 0008650128	Non-Gendered	Crimp	0.38 µm	15 µin	17.5 AWG	22 AWG	Gold
Molex 0008650811	Non-Gendered	Crimp	0.76 Ám	30 Áin	22 AWG	30 AWG	Gold
