643948 Series
Manufacturer: Belden Inc.
Beta
⌘K

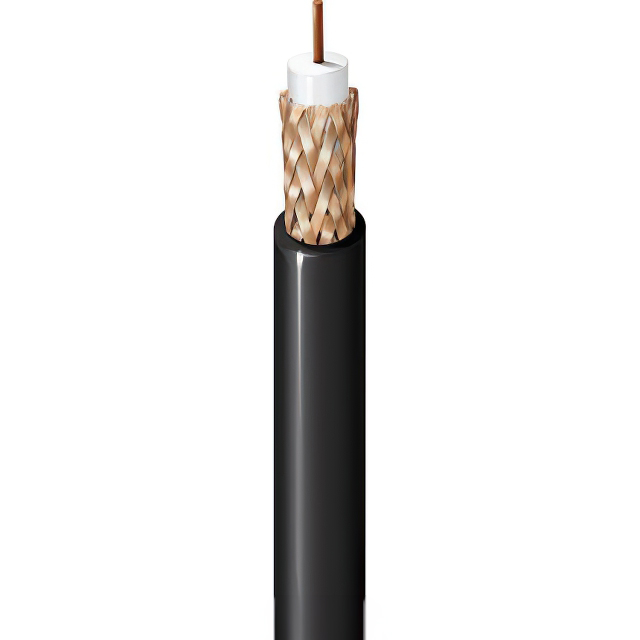

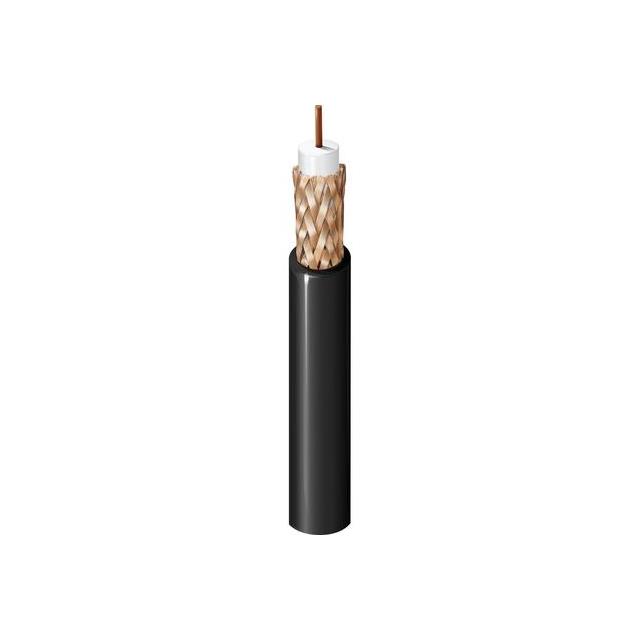

COAX RG-59 PLENUM COAX
| Part | Conductor Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Shield Material | Dielectric Material | Shield Type | Jacket (Insulation) Material | Cable Type | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Length [x] | Length [x] | Impedance | Jacket Color | Conductor Strand |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Bare | 84 | 3.43 mm | 0.135 in | 95 % | Copper Bare | Foam Fluorinated Ethylene Propylene (FFEP) | Braid | Low Smoke Poly-Vinyl Chloride (LSPVC) | Coaxial - Plenum | 20 AWG | 0.192 in | 4.88 mm | RG-59 | 152.4 m | 500 ft | 75 Ohms | Black | Solid |
 Belden Inc. | Copper Bare | 84 | 3.43 mm | 0.135 in | 95 % | Copper Bare | Foam Fluorinated Ethylene Propylene (FFEP) | Braid | Low Smoke Poly-Vinyl Chloride (LSPVC) | Coaxial - Plenum | 20 AWG | 0.192 in | 4.88 mm | RG-59 | 152.4 m | 500 ft | 75 Ohms | Natural | Solid |
Belden Inc. | Copper Bare | 84 | 3.43 mm | 0.135 in | 95 % | Copper Bare | Foam Fluorinated Ethylene Propylene (FFEP) | Braid | Low Smoke Poly-Vinyl Chloride (LSPVC) | Coaxial - Plenum | 20 AWG | 0.192 in | 4.88 mm | RG-59 | 304.8 m | 1000 ft | 75 Ohms | Natural | Solid |
