NL589 Series

Catalog

LAMP NEON PNL MNT 125V GREEN

Part	Voltage [Max]	Voltage [Min]	Type	Lens Style	Lens Size [diameter]	Lens Color	Panel Cutout Shape	Termination Style	Lamp Color	Lens Transparency	Panel Cutout Dimensions	Panel Cutout Dimensions	Voltage
BULGIN LIMITED NL589WL2G	130 V	105 V	Neon	Round with Flat Top	15.9 mm	Green	Round	Wire Leads - 8" (203.20mm)	Green	Diffused	0.5 in	12.7 mm
BULGIN LIMITED NL589WL2A	130 V	105 V	Neon	Round with Domed Top		Amber	Round	Wire Leads - 8" (203.20mm)	Amber	Diffused	0.5 in	12.7 mm
BULGIN LIMITED NL589H3R			Neon	Round with Domed Top		Red	Round		Red	Diffused	0.5 in	12.7 mm	250 VDC

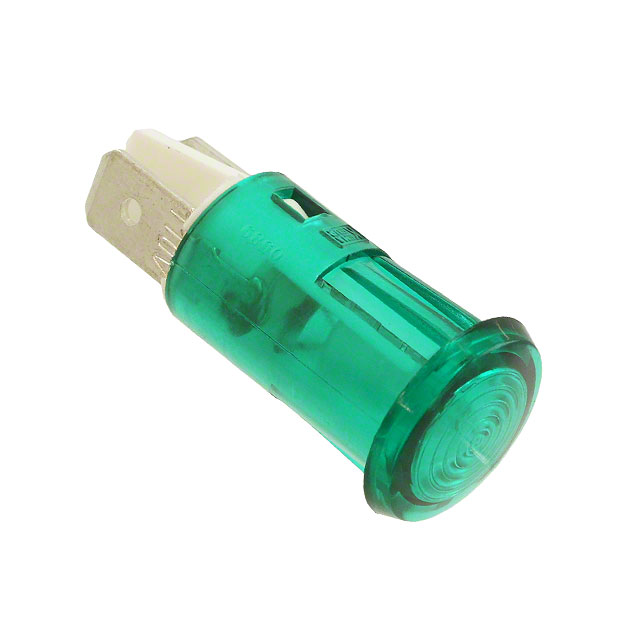

BULGIN LIMITED NL589C2G	130 V	105 V	Neon	Round with Flat Top	15.9 mm	Green	Round	Quick Connect - 0.250" (6.3mm)	Green	Diffused	0.5 in	12.7 mm
BULGIN LIMITED NL589H3A			Neon	Round with Domed Top		Amber	Round		Amber	Diffused	0.5 in	12.7 mm	250 VDC
BULGIN LIMITED NL589WL3R-24			Neon	Round with Domed Top		Red	Round	Wire Leads - 8" (203.20mm)	Red	Diffused	0.5 in	12.7 mm	250 VDC
BULGIN LIMITED NL589C3G			Neon	Round with Domed Top		Green	Round		Green	Diffused	0.5 in	12.7 mm	250 VDC

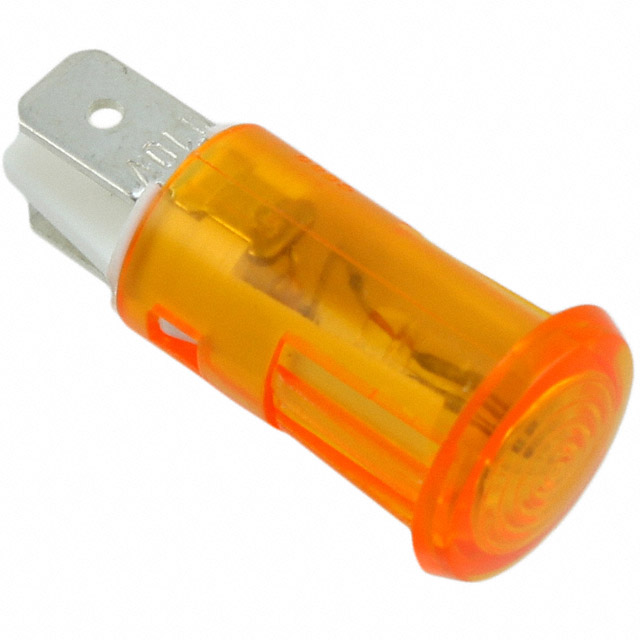

BULGIN LIMITED NL589C2A	130 V	105 V	Neon	Round with Flat Top	15.9 mm	Amber	Round	Quick Connect - 0.250" (6.3mm)	Amber	Diffused	0.5 in	12.7 mm
BULGIN LIMITED NL589C2R	130 V	105 V	Neon	Round with Flat Top	15.9 mm	Red	Round	Quick Connect - 0.250" (6.3mm)	Red	Diffused	0.5 in	12.7 mm
