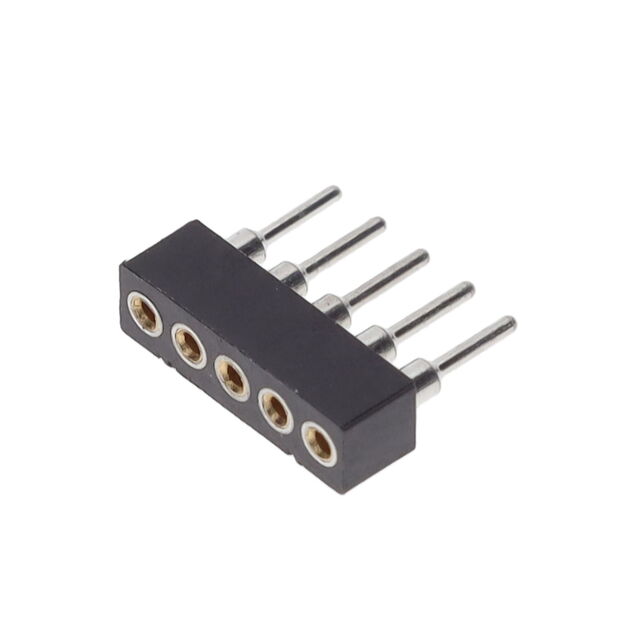

317-47 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
STANDRD SOLDRTL SNG SKT
| Part | Contact Resistance | Current Rating (Amps) | Termination Post Length | Termination Post Length | Material Flammability Rating | Pitch - Post | Pitch - Post | Contact Material - Post | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Termination | Contact Finish - Mating | Housing Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Mating | Type | Contact Finish - Post | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [y] | Number of Positions or Pins (Grid) [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | 1 x 4 | 4 pins | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | ||||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | 15 | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | 15 | 1 | |||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | 3 (1 x 3) | |||||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | 20 | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | |||||||
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | 8 | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | 8 | 1 | |||||||
 Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | 5 | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | |||||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | 12 | 1 | 12 | |||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | 7 | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | 7 | 1 | |||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | 18 | 1 | 18 | |||||
Mill-Max Manufacturing Corp. | 10 mOhm | 3 A | 0.125 in | 3.18 mm | UL94 V-0 | 0.07 in | 1.78 mm | Brass Alloy | Flash | 0.07 in | 1.78 mm | Solder | Gold | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 200 µin | 5.08 µm | 10 | Through Hole | -55 C | 125 °C | Beryllium Copper | SIP | Tin | 10 | 1 |
