A31CSP Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPDT 80A 24V
| Part | Contact Material | Coil Resistance | Coil Power | Mounting Type | Contact Rating (Current) | Features | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Operate Time | Coil Current | Must Release Voltage | Coil Voltage | Release Time | Contact Form | Termination Style | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

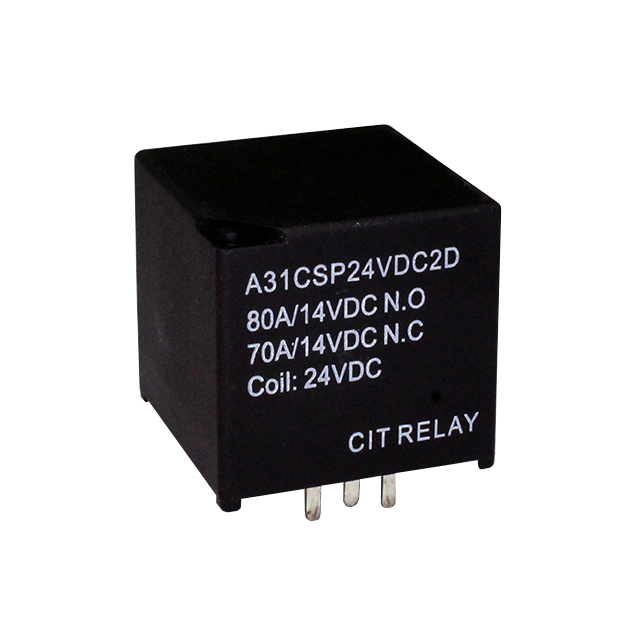

 CIT Relay and Switch | Silver Tin Oxide Indium Oxide (AgSnOInO) | 320 Ohms | 1.8 W | Through Hole | 80 A | Diode Sealed - Fully | 75 VDC | 125 °C | -40 C | Non Latching | 7 ms | 0.075 A | 2.4 VDC | 24 VDC | 5 ms | SPDT (1 Form C) | PC Pin | 16.8 VDC |

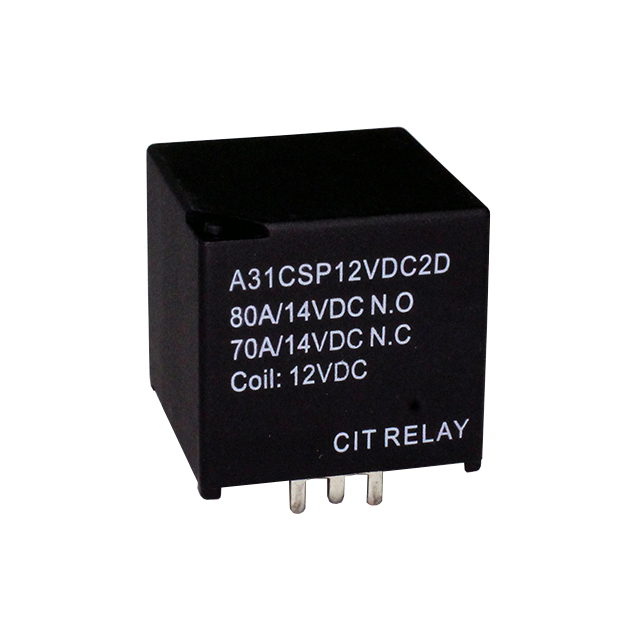

 CIT Relay and Switch | Silver Tin Oxide Indium Oxide (AgSnOInO) | 80 Ohms | 1.8 W | Through Hole | 80 A | Diode Sealed - Fully | 75 VDC | 125 °C | -40 C | Non Latching | 7 ms | 0.15 A | 1.2 VDC | 12 VDC | 5 ms | SPDT (1 Form C) | PC Pin | 8.4 VDC |
 CIT Relay and Switch | Silver Tin Oxide Indium Oxide (AgSnOInO) | 320 Ohms | 1.8 W | Through Hole | 80 A | Sealed - Fully | 75 VDC | 125 °C | -40 C | Non Latching | 7 ms | 0.075 A | 2.4 VDC | 24 VDC | 5 ms | SPDT (1 Form C) | PC Pin | 16.8 VDC |
