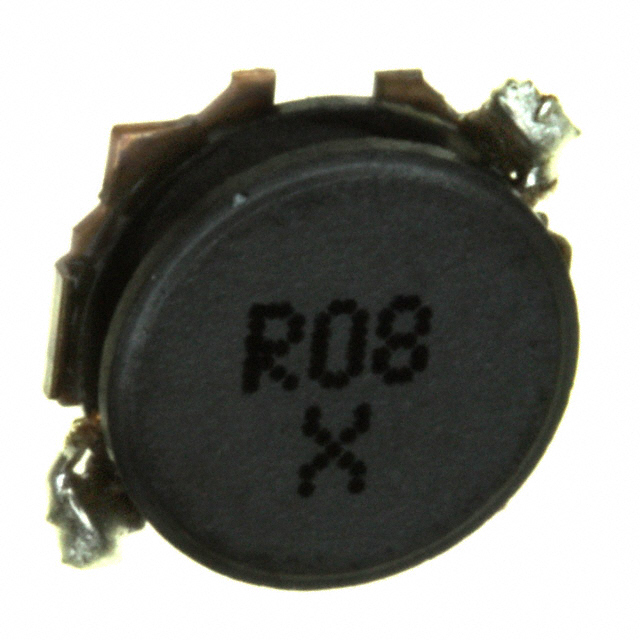

ELL-6PG Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

FIXED IND 6.8UH 1.6A 70 MOHM SMD

Part	Current Rating (Amps)	Package / Case	Current - Saturation (Isat)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR)	Type	Tolerance	Shielding	Inductance Frequency - Test	Mounting Type
Panasonic Industrial Automation Sales ELL-6PG6R8N	1.6 A	Nonstandard	1.4 A	2 mm	0.079 in	6.8 µH	0.236 in	6 mm	0.236 in	6 mm	70 mOhm	Wirewound	30 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PGR08N	2.8 A	Nonstandard	3.8 A	2 mm	0.079 in	800 nH	0.236 in	6 mm	0.236 in	6 mm	24 mOhm	Wirewound	30 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PG4R7N	1.75 A	Nonstandard		2 mm	0.079 in	4.7 ÁH	0.236 in	6 mm	0.236 in	6 mm	58 mOhm	Wirewound	30 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PG3R9N	1.9 A	Nonstandard	1.6 A	2 mm	0.079 in	3.9 µH	0.236 in	6 mm	0.236 in	6 mm	51 mOhm	Wirewound	30 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PG220M	900 mA	Nonstandard	800 mA	2 mm	0.079 in	22 µH	0.236 in	6 mm	0.236 in	6 mm	230 mOhm	Wirewound	20 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PG2R2N	2.2 A	Nonstandard	2.2 A	2 mm	0.079 in	2.2 µH	0.236 in	6 mm	0.236 in	6 mm	37 mOhm	Wirewound	30 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PG820M	450 mA	Nonstandard	400 mA	2 mm	0.079 in	82 µH	0.236 in	6 mm	0.236 in	6 mm	800 mOhm	Wirewound	20 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PG270M	800 mA	Nonstandard	730 mA	2 mm	0.079 in	27 µH	0.236 in	6 mm	0.236 in	6 mm	260 mOhm	Wirewound	20 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PG560M	0.55 A	Nonstandard	500 mA	2 mm	0.079 in	56 µH	0.236 in	6 mm	0.236 in	6 mm	520 mOhm	Wirewound	20 %	Shielded	100 kHz	Surface Mount
Panasonic Industrial Automation Sales ELL-6PG330M	750 mA	Nonstandard	700 mA	2 mm	0.079 in	33 µH	0.236 in	6 mm	0.236 in	6 mm	300 mOhm	Wirewound	20 %	Shielded	100 kHz	Surface Mount
