VO3150 Series

Catalog

OPTOISO 5.3KV 1CH GATE DVR 8DIP

Part	Pulse Width Distortion (Max) [Max]	Voltage - Isolation [custom]	Approval Agency	Rise / Fall Time (Typ)	Rise / Fall Time (Typ)	Common Mode Transient Immunity (Min) [Min]	Current - DC Forward (If) (Max) [Max]	Technology	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Current - Peak Output	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Number of Channels [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Mounting Type	Voltage - Forward (Vf) (Typ)	Supplier Device Package
Vishay Semiconductor Opto Division VO3150A	200 ns	5300 Vrms	cUR UR	100 ns	100 ns	25 kV/µs	25 mA	Optical Coupling	400 ns	400 ns	500 mA	15 V	32 V	1	-40 C	110 °C	500 mA	500 mA	8-DIP (0.300" 7.62mm)	Through Hole	1.3 V	8-DIP

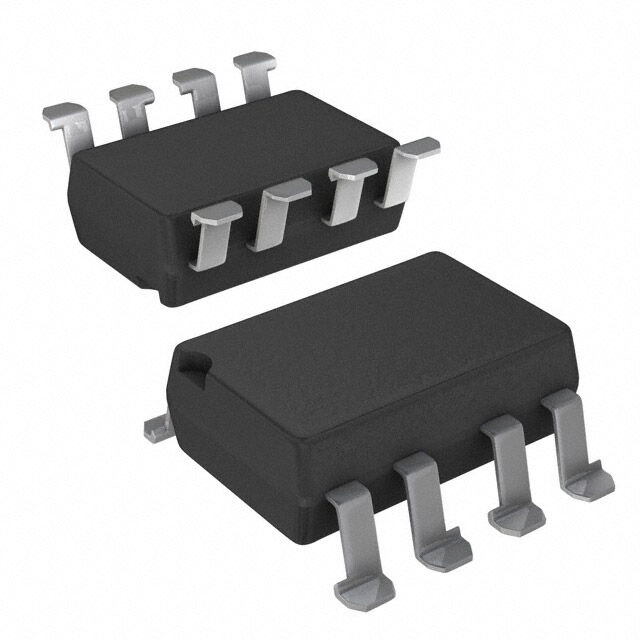

Vishay Semiconductor Opto Division VO3150A-X007T	200 ns	5300 Vrms	cUR UR	100 ns	100 ns	25 kV/µs	25 mA	Optical Coupling	400 ns	400 ns	500 mA	15 V	32 V	1	-40 C	110 °C	500 mA	500 mA	8-DIP (0.300" 7.62mm)	Surface Mount Through Hole	1.3 V	8-DIP 8-SMD
