5010/60C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

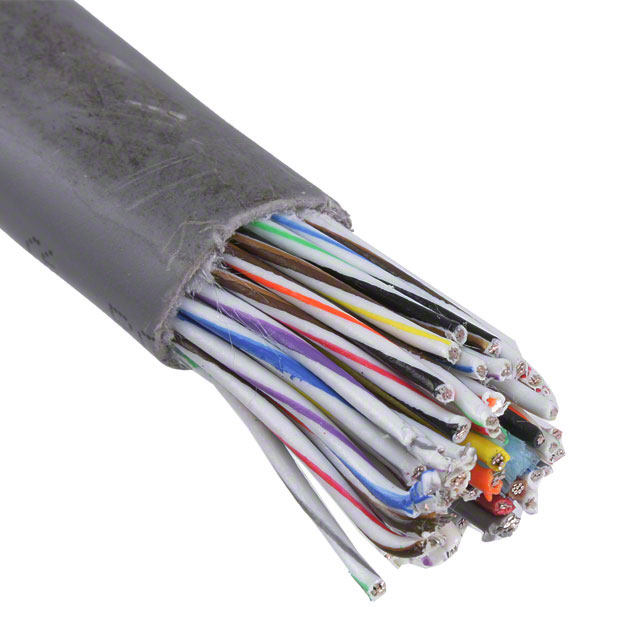

CABLE 60COND 22AWG SLATE
| Part | Length [x] | Length [x] | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Features | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket Color | Cable Type | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 ft | 30.5 m | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 30 AWG | 7 | Communication Control | Biological Compatibility Rip Cord | 22 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | ISO 10993 UL Style 2464 | Slate | Multi-Conductor | 60 | 0.518 in | 13.16 mm | ||
ALPHA WIRE | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 30 AWG | 7 | Communication Control | Biological Compatibility Rip Cord | 22 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | UL Style 2464 | Slate | Multi-Conductor | 60 | 0.518 in | 13.16 mm | 152.4 m | 500 ft | ||
 ALPHA WIRE | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 30 AWG | 7 | Communication Control | Biological Compatibility Rip Cord | 22 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | UL Style 2464 | Slate | Multi-Conductor | 60 | 0.518 in | 13.16 mm | ||||
ALPHA WIRE | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 300 VDC | 30 AWG | 7 | Communication Control | Biological Compatibility Rip Cord | 22 AWG | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | UL Style 2464 | Black | Multi-Conductor | 60 | 0.518 in | 13.16 mm | 304.8 m | 1000 ft |
