LYL29K Series
Manufacturer: ams-OSRAM USA INC.
Beta
⌘K

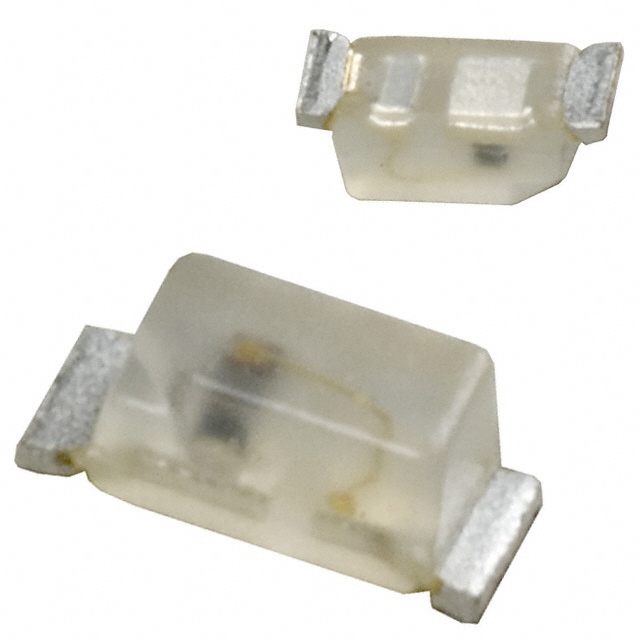

LED YELLOW DIFFUSED 0603 SMD
| Part | Lens Color | Lens Transparency | Current - Test | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Wavelength - Dominant | Lens Style | Mounting Type | Viewing Angle | Color | Wavelength - Peak | Package / Case | Package / Case | Configuration | Lens Size [x] | Lens Size [y] | Size / Dimension [x] | Size / Dimension [y] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ams-OSRAM USA INC. | White | Diffused | 2 mA | 1.8 V | 4.95 mcd | 587 nm | Rectangle with Flat Top | Surface Mount | 160 ° | Yellow | 591 nm | 1608 Metric | 0603 | Standard | 1.3 mm | 0.8 mm | 1.7 mm | 0.8 mm | 0.65 mm |
ams-OSRAM USA INC. | White | Diffused | 2 mA | 1.8 V | 7 mcd | 587 nm | Rectangle with Flat Top | Surface Mount | 160 ° | Yellow | 591 nm | 1608 Metric | 0603 | Standard | 1.3 mm | 0.8 mm | 1.7 mm | 0.8 mm | 0.65 mm |
