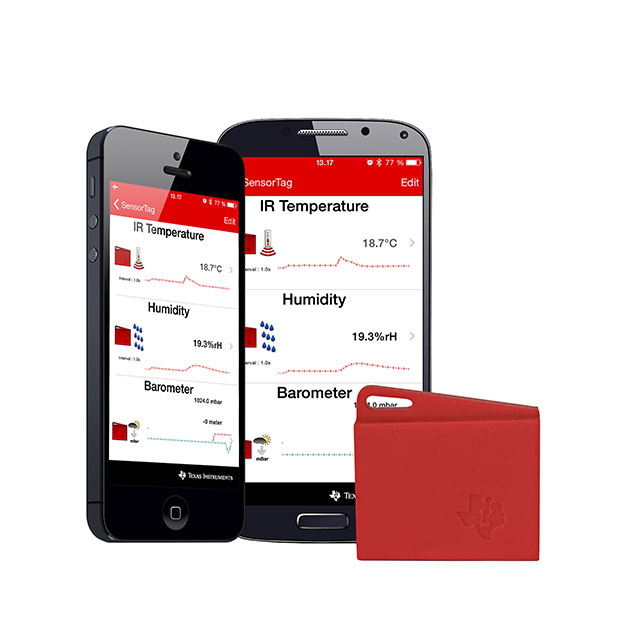

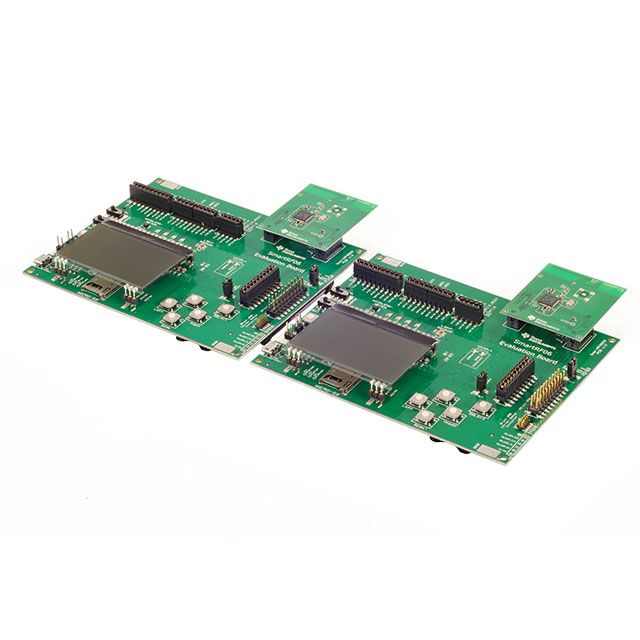

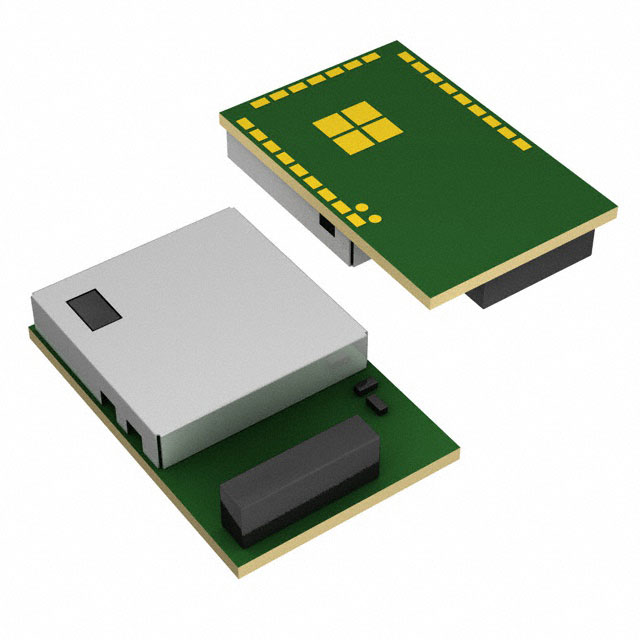

CC2650 Series
SimpleLink™ 32-bit Arm Cortex-M3 multiprotocol 2.4 GHz wireless MCU with 128kB Flash
Manufacturer: Texas Instruments
Catalog
SimpleLink™ 32-bit Arm Cortex-M3 multiprotocol 2.4 GHz wireless MCU with 128kB Flash
Key Features
• MicrocontrollerPowerful ARM®Cortex®-M3EEMBC CoreMark®Score: 142Up to 48-MHz Clock Speed128KB of In-System Programmable Flash8KB of SRAM for Cache20KB of Ultralow-Leakage SRAM2-Pin cJTAG and JTAG DebuggingSupports Over-The-Air Upgrade (OTA)Ultralow-Power Sensor ControllerCan Run Autonomous From the Rest of the System16-Bit Architecture2KB of Ultralow-Leakage SRAM for Code and DataEfficient Code Size Architecture, Placing Drivers, Bluetooth®Low Energy Controller, IEEE 802.15.4 MAC, and Bootloader in ROMRoHS-Compliant Packages4-mm × 4-mm RSM VQFN32 (10 GPIOs)5-mm × 5-mm RHB VQFN32 (15 GPIOs)7-mm × 7-mm RGZ VQFN48 (31 GPIOs)PeripheralsAll Digital Peripheral Pins Can Be Routed to Any GPIOFour General-Purpose Timer Modules(Eight 16-Bit or Four 32-Bit Timers, PWM Each)12-Bit ADC, 200-ksamples/s, 8-Channel Analog MUXContinuous Time ComparatorUltralow-Power Analog ComparatorProgrammable Current SourceUART2× SSI (SPI, MICROWIRE, TI)I2CI2SReal-Time Clock (RTC)AES-128 Security ModuleTrue Random Number Generator (TRNG)10, 15, or 31 GPIOs, Depending on Package OptionSupport for Eight Capacitive-Sensing ButtonsIntegrated Temperature SensorExternal SystemOn-Chip internal DC-DC ConverterVery Few External ComponentsSeamless Integration With the SimpleLink™ CC2590 and CC2592 Range ExtendersPin Compatible With the SimpleLink CC13xx in 4-mm × 4-mm and 5-mm × 5-mm VQFN PackagesLow PowerWide Supply Voltage RangeNormal Operation: 1.8 to 3.8 VExternal Regulator Mode: 1.7 to 1.95 VActive-Mode RX: 5.9 mAActive-Mode TX at 0 dBm: 6.1 mAActive-Mode TX at +5 dBm: 9.1 mAActive-Mode MCU: 61 µA/MHzActive-Mode MCU: 48.5 CoreMark/mAActive-Mode Sensor Controller: 8.2 µA/MHzStandby: 1 µA (RTC Running and RAM/CPU Retention)Shutdown: 100 nA (Wake Up on External Events)RF Section2.4-GHz RF Transceiver Compatible With Bluetooth Low Energy (BLE) 4.2 Specification and IEEE 802.15.4 PHY and MACExcellent Receiver Sensitivity (–97 dBm for BLE and –100 dBm for 802.15.4), Selectivity, and Blocking PerformanceLink budget of 102 dB/105 dB (BLE/802.15.4)Programmable Output Power up to +5 dBmSingle-Ended or Differential RF InterfaceSuitable for Systems Targeting Compliance With Worldwide Radio Frequency RegulationsETSI EN 300 328 (Europe)EN 300 440 Class 2 (Europe)FCC CFR47 Part 15 (US)ARIB STD-T66 (Japan)Tools and Development EnvironmentFull-Feature and Low-Cost Development KitsMultiple Reference Designs for Different RF ConfigurationsPacket Sniffer PC SoftwareSensor Controller StudioSmartRF™ StudioSmartRF Flash Programmer 2IAR Embedded Workbench®for ARMCode Composer Studio™All trademarks are the property of their respective owners.MicrocontrollerPowerful ARM®Cortex®-M3EEMBC CoreMark®Score: 142Up to 48-MHz Clock Speed128KB of In-System Programmable Flash8KB of SRAM for Cache20KB of Ultralow-Leakage SRAM2-Pin cJTAG and JTAG DebuggingSupports Over-The-Air Upgrade (OTA)Ultralow-Power Sensor ControllerCan Run Autonomous From the Rest of the System16-Bit Architecture2KB of Ultralow-Leakage SRAM for Code and DataEfficient Code Size Architecture, Placing Drivers, Bluetooth®Low Energy Controller, IEEE 802.15.4 MAC, and Bootloader in ROMRoHS-Compliant Packages4-mm × 4-mm RSM VQFN32 (10 GPIOs)5-mm × 5-mm RHB VQFN32 (15 GPIOs)7-mm × 7-mm RGZ VQFN48 (31 GPIOs)PeripheralsAll Digital Peripheral Pins Can Be Routed to Any GPIOFour General-Purpose Timer Modules(Eight 16-Bit or Four 32-Bit Timers, PWM Each)12-Bit ADC, 200-ksamples/s, 8-Channel Analog MUXContinuous Time ComparatorUltralow-Power Analog ComparatorProgrammable Current SourceUART2× SSI (SPI, MICROWIRE, TI)I2CI2SReal-Time Clock (RTC)AES-128 Security ModuleTrue Random Number Generator (TRNG)10, 15, or 31 GPIOs, Depending on Package OptionSupport for Eight Capacitive-Sensing ButtonsIntegrated Temperature SensorExternal SystemOn-Chip internal DC-DC ConverterVery Few External ComponentsSeamless Integration With the SimpleLink™ CC2590 and CC2592 Range ExtendersPin Compatible With the SimpleLink CC13xx in 4-mm × 4-mm and 5-mm × 5-mm VQFN PackagesLow PowerWide Supply Voltage RangeNormal Operation: 1.8 to 3.8 VExternal Regulator Mode: 1.7 to 1.95 VActive-Mode RX: 5.9 mAActive-Mode TX at 0 dBm: 6.1 mAActive-Mode TX at +5 dBm: 9.1 mAActive-Mode MCU: 61 µA/MHzActive-Mode MCU: 48.5 CoreMark/mAActive-Mode Sensor Controller: 8.2 µA/MHzStandby: 1 µA (RTC Running and RAM/CPU Retention)Shutdown: 100 nA (Wake Up on External Events)RF Section2.4-GHz RF Transceiver Compatible With Bluetooth Low Energy (BLE) 4.2 Specification and IEEE 802.15.4 PHY and MACExcellent Receiver Sensitivity (–97 dBm for BLE and –100 dBm for 802.15.4), Selectivity, and Blocking PerformanceLink budget of 102 dB/105 dB (BLE/802.15.4)Programmable Output Power up to +5 dBmSingle-Ended or Differential RF InterfaceSuitable for Systems Targeting Compliance With Worldwide Radio Frequency RegulationsETSI EN 300 328 (Europe)EN 300 440 Class 2 (Europe)FCC CFR47 Part 15 (US)ARIB STD-T66 (Japan)Tools and Development EnvironmentFull-Feature and Low-Cost Development KitsMultiple Reference Designs for Different RF ConfigurationsPacket Sniffer PC SoftwareSensor Controller StudioSmartRF™ StudioSmartRF Flash Programmer 2IAR Embedded Workbench®for ARMCode Composer Studio™All trademarks are the property of their respective owners.
Description
AI
The CC2650 device is a wireless MCU targeting Bluetooth, ZigBee®and 6LoWPAN, and ZigBee RF4CE remote control applications.
The device is a member of the CC26xx family of cost-effective, ultralow power, 2.4-GHz RF devices. Very low active RF and MCU current and low-power mode current consumption provide excellent battery lifetime and allow for operation on small coin cell batteries and in energy-harvesting applications.
The CC2650 device contains a 32-bit ARM Cortex-M3 processor that runs at 48 MHz as the main processor and a rich peripheral feature set that includes a unique ultralow power sensor controller. This sensor controller is ideal for interfacing external sensors and for collecting analog and digital data autonomously while the rest of the system is in sleep mode. Thus, the CC2650 device is ideal for applications within a whole range of products including industrial, consumer electronics, and medical.
The Bluetooth Low Energy controller and the IEEE 802.15.4 MAC are embedded into ROM and are partly running on a separate ARM Cortex-M0 processor. This architecture improves overall system performance and power consumption and frees up flash memory for the application.
The Bluetooth and ZigBee stacks are available free of charge from www.ti.com.
