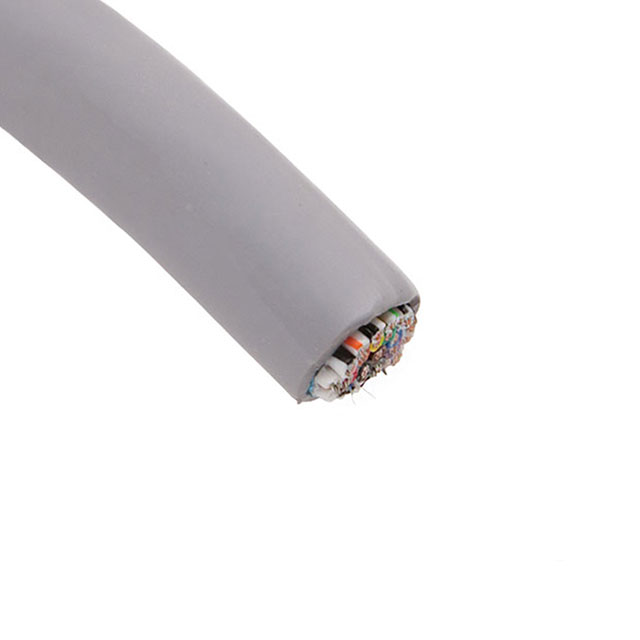

5199/25C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 25COND 22AWG SHLD 100'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Voltage | Jacket (Insulation) Material | Ratings | Number of Conductors [custom] | Shield Type | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Usage | Conductor Material | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 30 AWG | 7 | 100 ft | 30.5 m | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 | 25 | Foil | Slate | -35 °C | 105 ░C | Multi-Conductor | Communication Control | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 0.372 in | 9.45 mm | 22 AWG | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Aluminum | 100 % | 30 AWG | 7 | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 | 25 | Foil | Slate | -35 °C | 105 ░C | Multi-Conductor | Communication Control | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 0.372 in | 9.45 mm | 22 AWG | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | ||
 ALPHA WIRE | Aluminum | 100 % | 30 AWG | 7 | 300 VDC | Poly-Vinyl Chloride (PVC) | ISO 10993 | 25 | Foil | Black | -35 °C | 105 ░C | Multi-Conductor | Communication Control | Copper Tinned | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 0.372 in | 9.45 mm | 22 AWG | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
