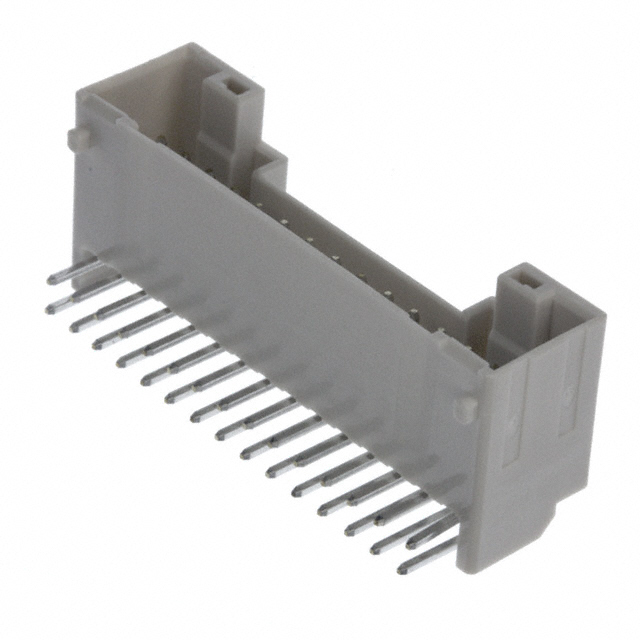

S30B-PUD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 30POS 2MM
| Part | Contact Shape | Shrouding | Features | Operating Temperature [Max] | Operating Temperature [Min] | Style | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Contact Material | Mounting Type | Fastening Type | Number of Positions | Number of Positions Loaded | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Connector Type | Current Rating (Amps) | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Voltage Rating | Material Flammability Rating | Insulation Color | Termination | Number of Rows [custom] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Square | Shrouded - 4 Wall | Board Guide | 85 °C | -25 °C | Board to Cable/Wire | 0.335 " | 8.51 mm | 0.118 in | 3 mm | Copper Alloy | Right Angle Through Hole | Latch Holder | 30 | All | Tin | 0.079 " | 2 mm | Header | 3 A | Glass Filled Nylon 6/6 Polyamide (PA66) | 2 mm | 0.079 in | 250 V | UL94 V-0 | Natural | Solder | 2 | Male Pin |
