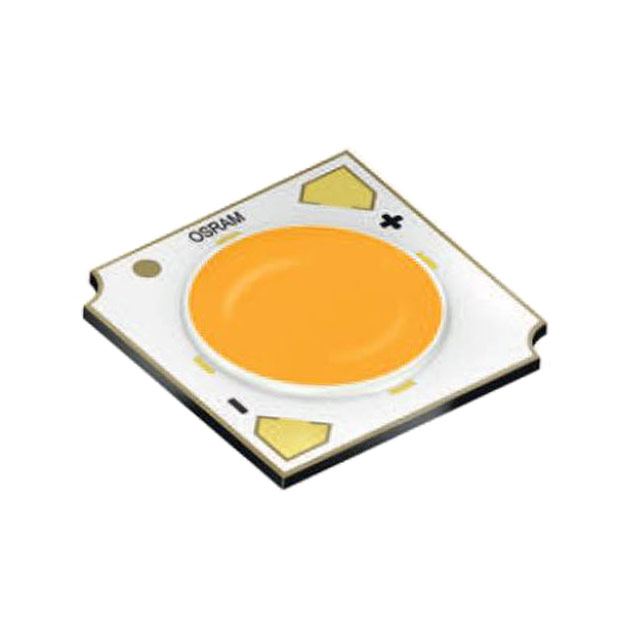

GW KAGJB3.CM Series

Catalog

LED COB SOLERIQ WHT SQ 3500K

Part	CRI (Color Rendering Index)	Current - Max [Max]	Current - Test	Temperature - Test	Lumens/Watt @ Current - Test	Type	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	CCT (K)	Color	Viewing Angle	Lens Type	Configuration	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Height [z]
ams-OSRAM USA INC. GW KAGJB3.CM-SQSR-35S3-T02	90	1.15 A	500 mA	85 °C	120 lm/W	Chip On Board (COB)	34.7 V	2240 lm	1940 lm	2090 lm	3500 K	Warm White	120 °	Flat	Square	13 mm	19 mm	19 mm	1.4 mm
ams-OSRAM USA INC. GW KAGJB3.CM-SPSQ-40S3	90	1.15 A	500 mA	85 °C	112 lm/W	Chip On Board (COB)	34.7 V			1950 lm	4000 K	Neutral White	120 °	Flat	Square	13 mm	19 mm	19 mm	1.4 mm
ams-OSRAM USA INC. GW KAGJB3.CM-SPSQ-35B3-T02	90	1.15 A	500 mA	85 °C	112 lm/W	Chip On Board (COB)	34.7 V			1950 lm	3500 K	Warm White	120 °	Flat	Square	13 mm	19 mm	19 mm	1.4 mm
ams-OSRAM USA INC. GW KAGJB3.CM-RUSP-35B3	90	1.15 A	500 mA	85 °C	103 lm/W	Chip On Board (COB)	34.7 V	1940 lm	1640 lm		3500 K	Warm White	120 °	Flat	Square	13 mm	19 mm	19 mm	1.4 mm
ams-OSRAM USA INC. GW KAGJB3.CM-RUSP-30B3-T02	90	1.15 A	500 mA	85 °C	103 lm/W	Chip On Board (COB)	34.7 V	1940 lm	1640 lm		3000 K	Warm White	120 °	Flat	Square	13 mm	19 mm	19 mm	1.4 mm
ams-OSRAM USA INC. GW KAGJB3.CM-RUSP-27S3-T02	90	1.15 A	500 mA	85 °C	103 lm/W	Chip On Board (COB)	34.7 V	1940 lm	1640 lm		2700 K	Warm White	120 °	Flat	Square	13 mm	19 mm	19 mm	1.4 mm
ams-OSRAM USA INC. GW KAGJB3.CM-SPSQ-27S3-T02	90	1.15 A	500 mA	85 °C	112 lm/W	Chip On Board (COB)	34.7 V			1950 lm	2700 K	Warm White	120 °	Flat	Square	13 mm	19 mm	19 mm	1.4 mm
